Product line · Professional handheld scanners
EinScan is Shining 3D’s pro line below metrology-grade FreeScan: versatile, often wireless, mixing laser and IR. The current generation runs standalone – display, compute and battery in the scanner. Pro HD remains the PC-tethered modular classic.
Current generation
The new EinScan generation is all-in-one: Libre and Rigil scan without a laptop, with hybrid light and marker-free laser modes. Medixa is the same idea for O&P, Trak adds an optical tracker when large areas must stay markerless.
EinScan Pro HD is the previous generation: modular, USB to a PC, with Color Pack and Industrial Pack. New buys usually mean Rigil or Libre – unless the workflow still depends on EXScan Pro and a turntable.
Tri-mode laser scanner: standalone, Wi-Fi to PC or cable. Laser HD up to 0.04 + 0.06 mm/m, IR for bodies and outdoors, marker-free laser scanning.
Best for: Reverse engineering, dark metals, mixed object sizes without spray.
View product →

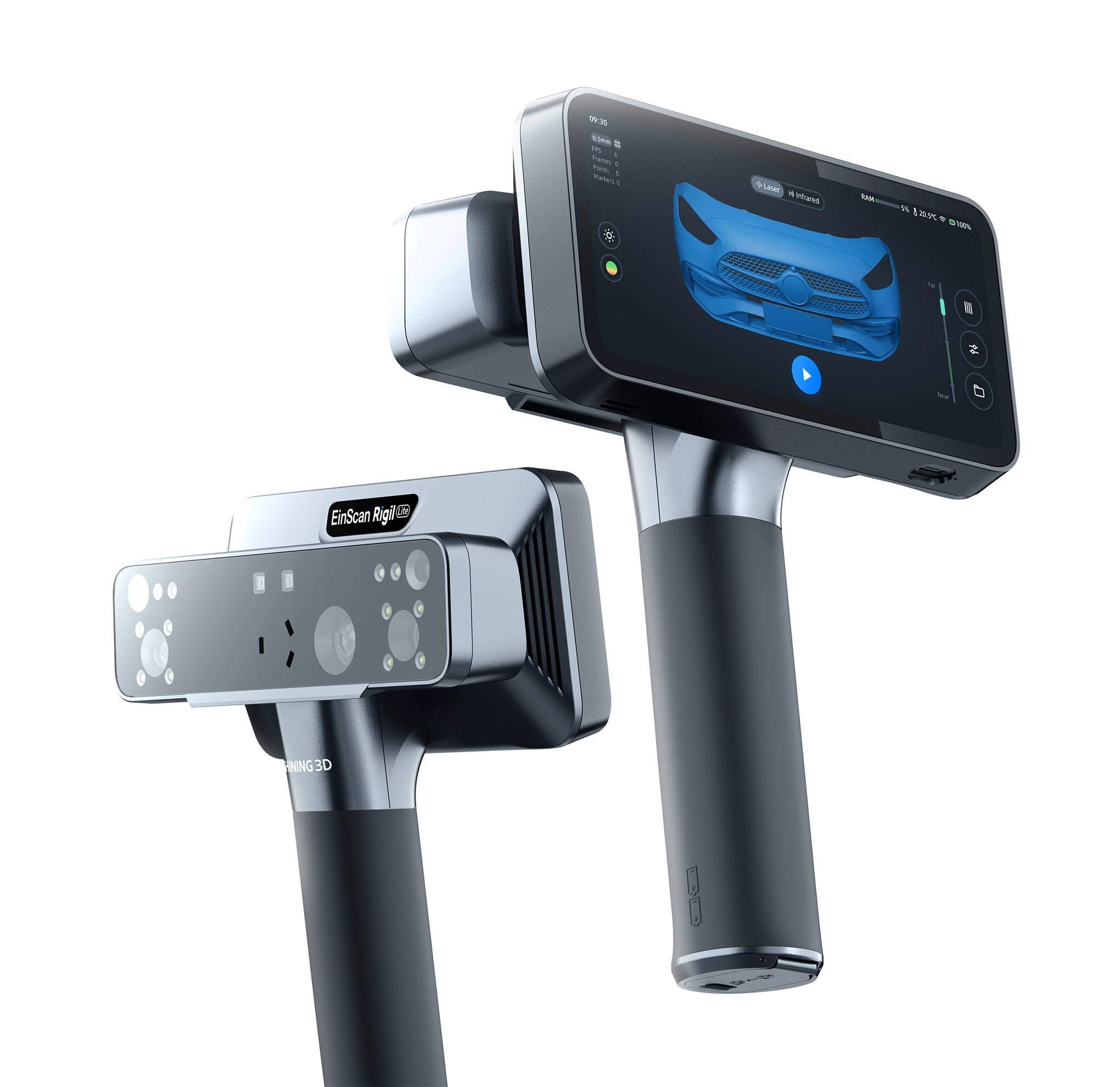

The slimmer Rigil: scanner, display, compute, storage and power in one device. Hybrid light, AI tracking, resolution down to 0.05 mm, marker-free and wireless.
Best for: Mobile work where full Rigil metrology depth is not required.
View product →

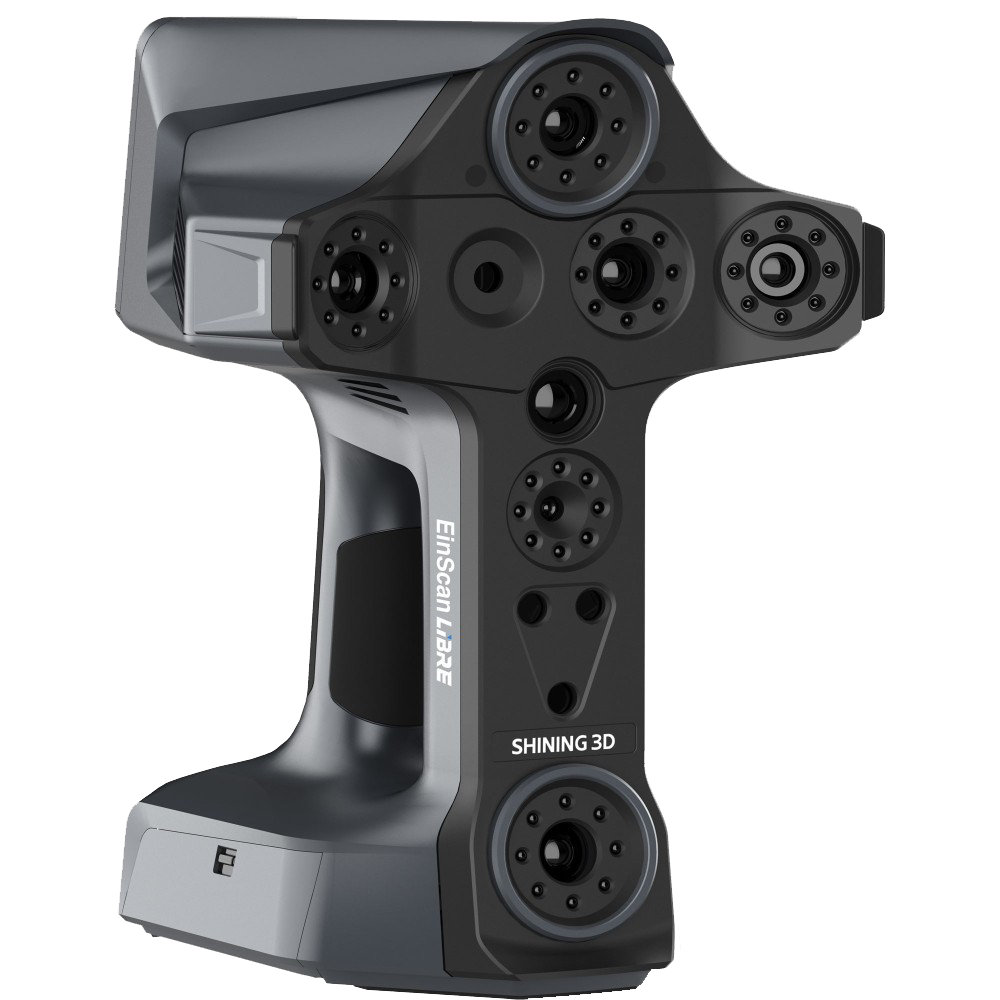

The first standalone EinScan with texture alignment in laser HD. NVIDIA Jetson Orin NX, 1 TB SSD, 5.5″ OLED, 101 laser lines, IR Rapid from 0.1 m to over 10 m.
Technical data
| Spec | Pro HD | Rigil | Libre | Medixa | Trak |
|---|---|---|---|---|---|
| Role | Modular, PC | Tri-mode standalone | Wireless standalone | O&P all-in-one | Tracker + handheld |
| Accuracy | 0,04 mm / 0,045 mm | 0,04 + 0,06 mm/m | 0,04 + 0,06 mm/m | 0,05 mm | volumetric to 0.1 mm |
| Light | White light / fringe | Blue laser + IR | 101 laser lines + IR | White light + IR | Laser + tracking |
| PC required | Yes | Optional (3 modes) | No | No | No / hybrid |
| Marker-free (laser) | No (HD) | Yes | Yes (laser HD + texture) | Yes (body) | Yes (tracker) |
Values from Shining 3D brochures and catalog data for each EinScan model (Libre, Rigil, Rigil Lite, Medixa, Trak, Pro HD). Accuracies depend on mode; volumetric figures where the sheet states them.
What changes
Libre and Rigil put display, onboard compute, SSD and battery in the housing. Pro HD still needs a PC, a cable and optional packs.
Blue laser lines plus infrared: dark and reflective parts without spray, IR for bodies and large areas, laser HD for detail. Pro HD stays white-light / fringe.
Rigil and Libre can track in laser HD without stickers. Pro HD usually still needs markers in handheld HD for volumetric accuracy.
Older models

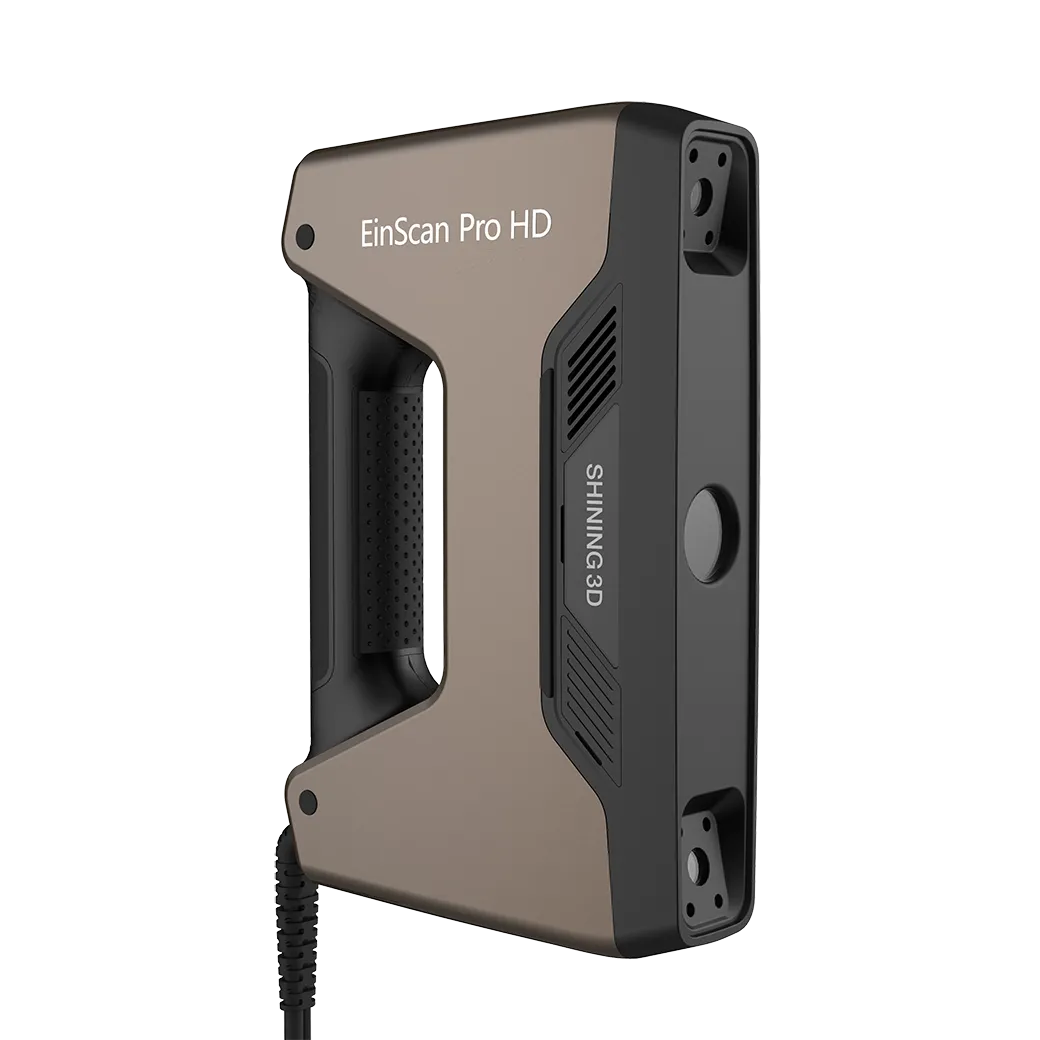

The workhorse EinScan on a PC: handheld HD with fringe patterns, fixed scan 0.04 mm, handheld HD 0.045 mm, volumetric 0.045 mm + 0.3 mm/m. Color Pack and Industrial Pack as modules.
Best for: Studio, turntable, existing EXScan Pro setups.
View product →Workflow
Libre, Rigil and Medixa finish mesh and export on the device. Pro HD stays on EXScan Pro on a PC, including turntable and texture pack.
Scan-to-CAD for EinScan data when the mesh has to become a parametric model.
View software →Downloads
Standalone or PC, laser or white light, clinic or metrology room – we’ll set that from part, accuracy and budget.
Best for: Outdoors, large objects, full-colour scans with no cable or laptop.

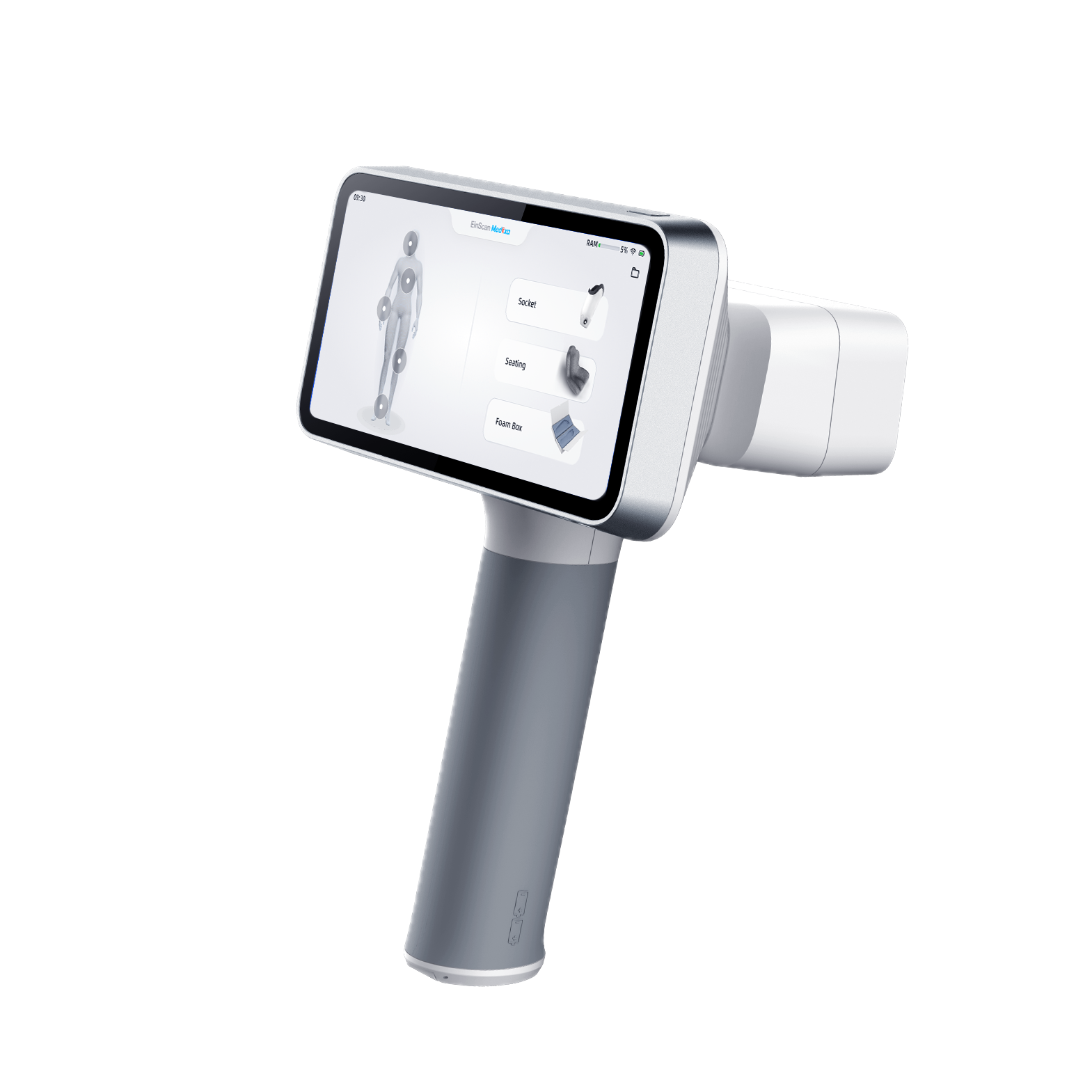

Wireless all-in-one for orthotics and prosthetics: white light and IR, motion compensation, 5 MP texture, preset body parts. Accuracy 0.05 mm, volumetric 0.05 + 0.1 mm/m.
Best for: Sockets, helmets, seating – clinic instead of a metrology room.
View product →
Wireless, markerless tracking. The handheld unit detaches and works as a laser scanner on its own. Tracking volume 15 m³, resolution 0.05–10 mm, volumetric accuracy to 0.1 mm.
Best for: Large assemblies where stick-on markers are not an option.
View product →
