Shining 3D
EinScan Libre
The wireless Shining 3D EinScan Libre handheld scanner enables standalone operation via an OLED touchscreen and integrated processing.
SHINING-3D-EINSCAN-LIBRESKU1VariantshardwareProduct type
01 / 07
Shining 3D EinScan Libre
The wireless Shining 3D EinScan Libre handheld scanner enables standalone operation via an OLED touchscreen and integrated processing.
€25,999.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Included in this package
€338.00 value at no extra cost
Included in the packageIncluded€89.00
Included in the packageIncluded€249.00
Optional upgrades
Is this the right system for your application?We review your application, component and workflow with you.
or
All details
Product information

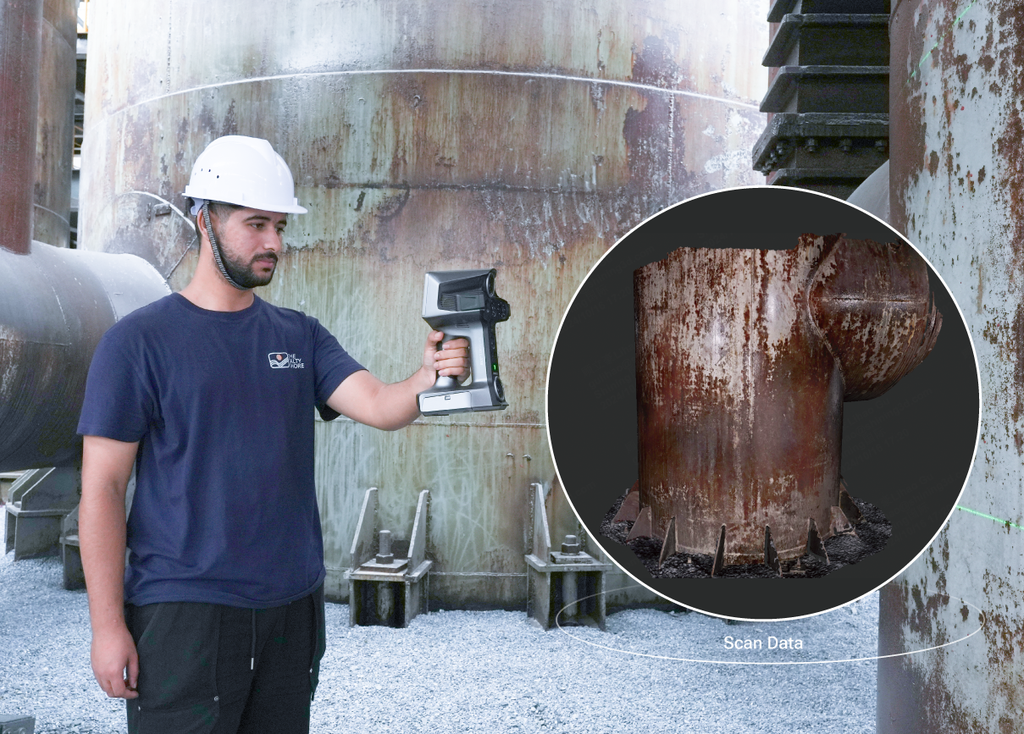

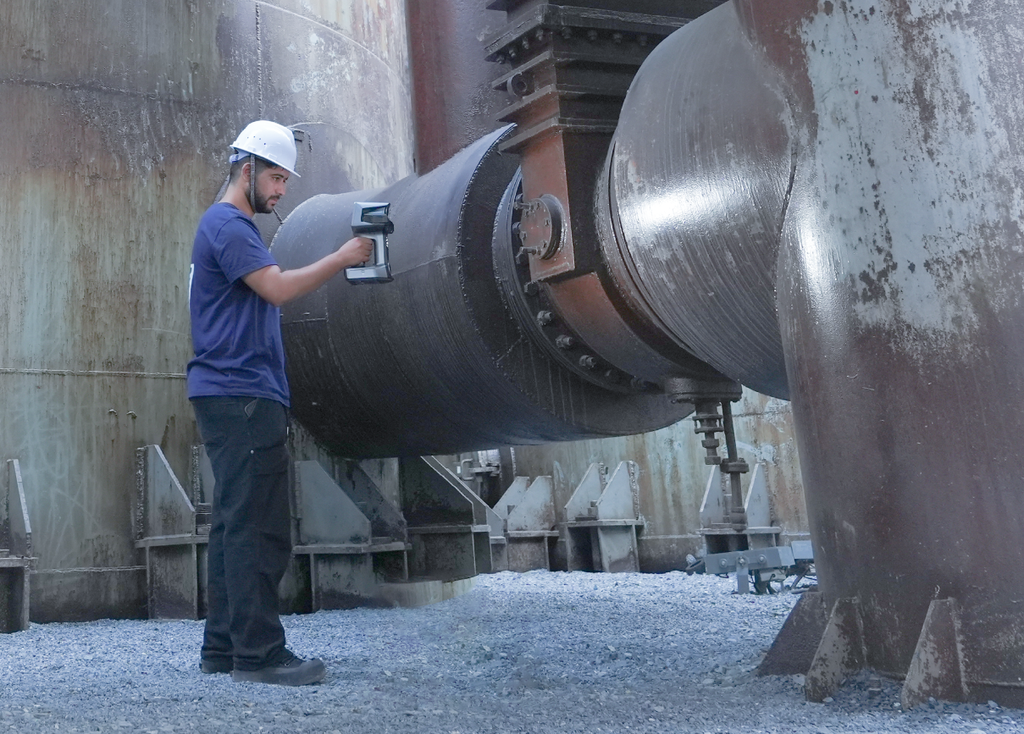

The Shining 3D EinScan Libre is a cutting-edge, fully wireless handheld 3D scanner designed for versatile and high-precision scanning without the need for cables or a connected laptop. Featuring a built-in 5.5-inch OLED touchscreen and powered by an NVIDIA Jetson Orin NX processor, it enables seamless standalone operation with up to 3 hours of battery life, making it ideal for on-site scanning indoors or outdoors.
This scanner excels in capturing objects ranging from small items (above 5 cm) to large-scale subjects over 10 meters, including challenging surfaces such as black, shiny, or reflective materials thanks to its multiple light sources and advanced camera system. The EinScan Libre supports various alignment modes like texture, feature, hybrid, and markers, enabling accurate and efficient scanning workflows tailored to diverse applications such as reverse engineering, digital archiving, manufacturing, heritage preservation, CGI, forensics, and architecture.

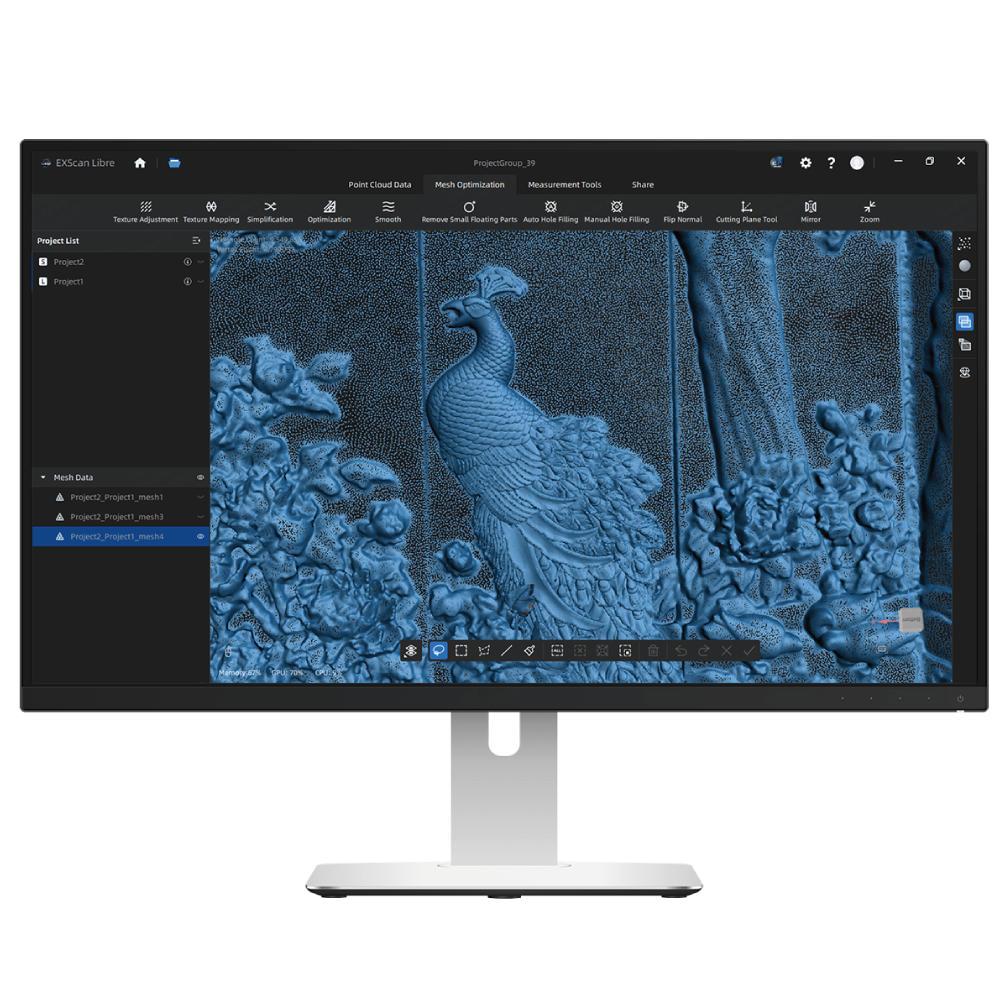

Users benefit from an intuitive touchscreen interface that facilitates live capture, scan preview, and in-device data management, complemented by wireless data transfer options via WiFi 6 and Gigabit Ethernet. The scanner offers three scanning modes—IR Rapid for large objects, IR Adaptive for reflective surfaces with markers, and Laser HD for high-detail capture—ensuring flexibility with point distances from 0.05 mm to 10 mm and volumetric accuracy up to 0.04 mm plus 0.06 mm per meter. Its broad application range, portability, and advanced technology make the EinScan Libre a premium solution for professionals seeking efficient and precise 3D scanning.
Features
Wireless Standalone Operation
Fully wireless with built-in 1TB SSD, 5.5-inch touchscreen, and WiFi 6 connectivity for maximum portability and convenience.
Advanced Multi-Light Scanning
Combines IR VCSEL, 38 IR laser lines, and 101 blue laser lines for optimized scanning of various object types, including dark, shiny, and transparent surfaces.
Multiple Alignment Modes
Supports feature, texture, hybrid, markers, and global markers alignments to enhance scan accuracy and versatility.
High Precision and Range
Offers volumetric accuracy up to 0.04 mm + 0.06 mm/m, with scanning ranges from 5 cm to over 10 meters for detailed and large-scale projects.
User-Friendly Touchscreen Interface
Integrated OLED display enables direct scan control, preview, and quick data editing on the device without a PC.
Technical product details
SKUSHINING-3D-EINSCAN-LIBRE
Measurement
AccuracyUp to 0.04 mm + 0.06 mm/m
Range5 cm to over 10 m
The Shining 3D EinScan Libre is a cutting-edge, fully wireless handheld 3D scanner designed for versatile and high-precision scanning without the need for cables or a connected laptop. Featuring a built-in 5.5-inch OLED touchscreen and powered by an NVIDIA Jetson Orin NX processor, it enables seamless standalone operation with up to 3 hours of battery life, making it ideal for on-site scanning indoors or outdoors.
This scanner excels in capturing objects ranging from small items (above 5 cm) to large-scale subjects over 10 meters, including challenging surfaces such as black, shiny, or reflective materials thanks to its multiple light sources and advanced camera system. The EinScan Libre supports various alignment modes like texture, feature, hybrid, and markers, enabling accurate and efficient scanning workflows tailored to diverse applications such as reverse engineering, digital archiving, manufacturing, heritage preservation, CGI, forensics, and architecture.
Users benefit from an intuitive touchscreen interface that facilitates live capture, scan preview, and in-device data management, complemented by wireless data transfer options via WiFi 6 and Gigabit Ethernet. The scanner offers three scanning modes—IR Rapid for large objects, IR Adaptive for reflective surfaces with markers, and Laser HD for high-detail capture—ensuring flexibility with point distances from 0.05 mm to 10 mm and volumetric accuracy up to 0.04 mm plus 0.06 mm per meter. Its broad application range, portability, and advanced technology make the EinScan Libre a premium solution for professionals seeking efficient and precise 3D scanning.
Features
Wireless Standalone Operation
Fully wireless with built-in 1TB SSD, 5.5-inch touchscreen, and WiFi 6 connectivity for maximum portability and convenience.
Advanced Multi-Light Scanning
Combines IR VCSEL, 38 IR laser lines, and 101 blue laser lines for optimized scanning of various object types, including dark, shiny, and transparent surfaces.
Multiple Alignment Modes
Supports feature, texture, hybrid, markers, and global markers alignments to enhance scan accuracy and versatility.
High Precision and Range
Offers volumetric accuracy up to 0.04 mm + 0.06 mm/m, with scanning ranges from 5 cm to over 10 meters for detailed and large-scale projects.
User-Friendly Touchscreen Interface
Integrated OLED display enables direct scan control, preview, and quick data editing on the device without a PC.
Technical product details
SKUSHINING-3D-EINSCAN-LIBRE
Measurement
AccuracyUp to 0.04 mm + 0.06 mm/m
Range5 cm to over 10 m
Fields of application
Where EinScan Libre is used
Industries
Applications
