Shining 3D
FreeScan UE Pro
The Shining 3D FreeScan UE Pro combines metrology-grade laser scanning with video photogrammetry for demanding quality control tasks.
C8866SKU10000 gWeighthardwareProduct type
01 / 05

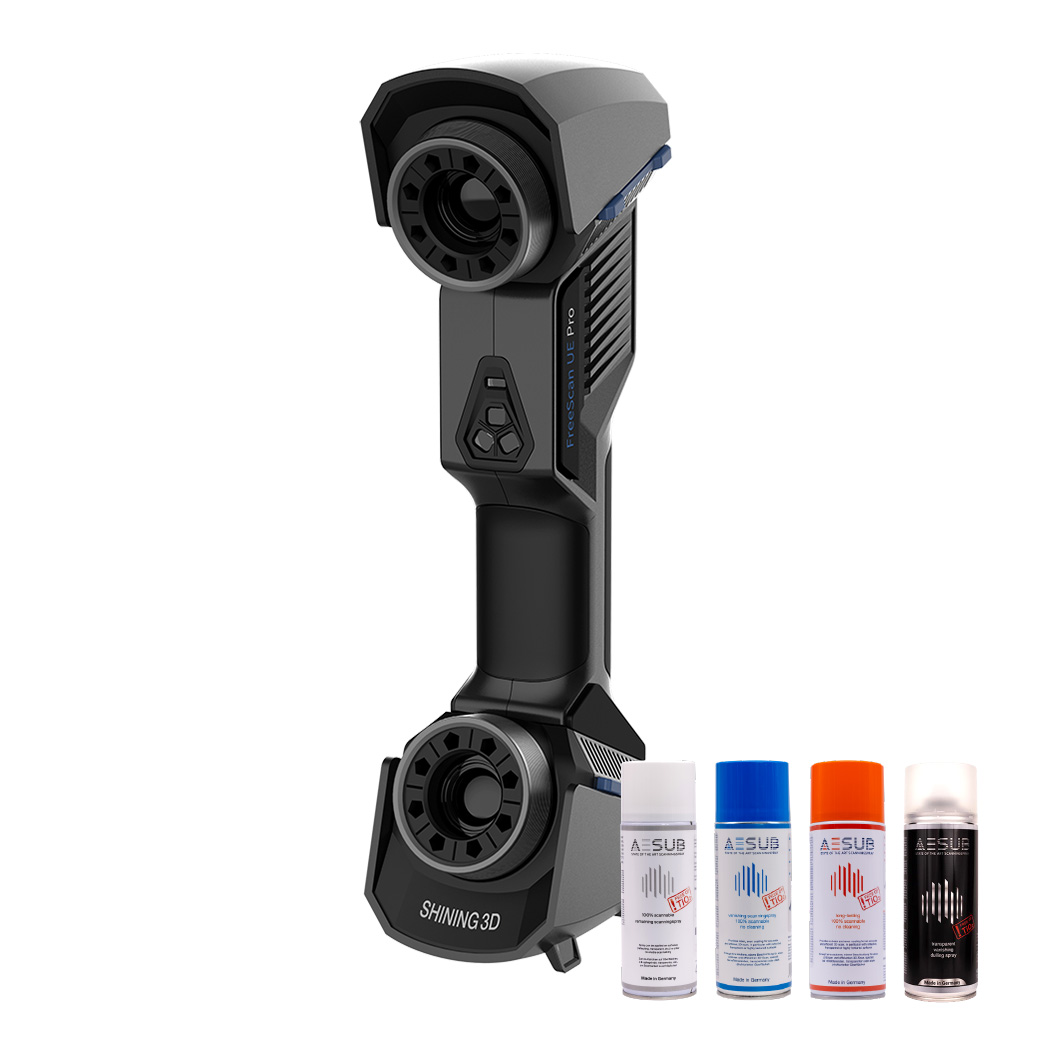

Shining 3D FreeScan UE Pro
The Shining 3D FreeScan UE Pro combines metrology-grade laser scanning with video photogrammetry for demanding quality control tasks.
€17,999.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Bonus
€338.00 value at no extra cost
Video Workflow LibraryIncluded in the packageIncluded€249.00
FreeScan, EinScan & Einstar PackageIncluded in the packageIncluded€89.00
Is this the right system for your application?We review your application, component and workflow with you.
or
All details
Product information

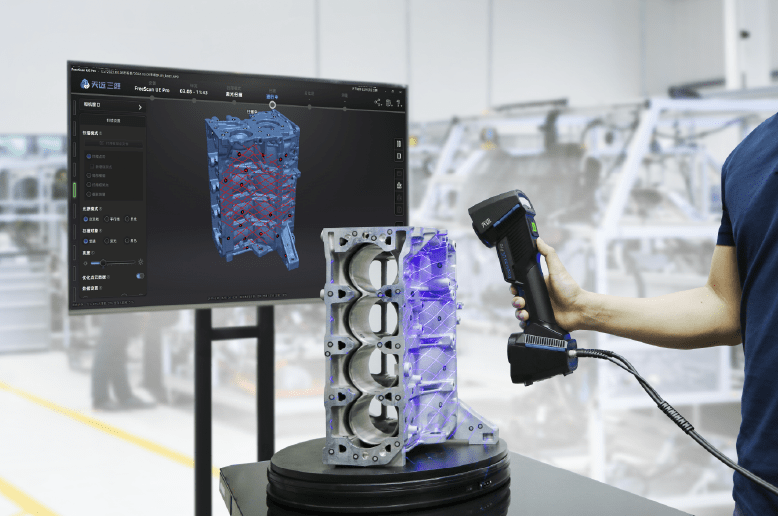

The Shining 3D FreeScan UE Pro is a high-precision metrology-grade handheld 3D laser scanner tailored for demanding applications such as quality control, reverse engineering, and additive manufacturing. It delivers exceptional accuracy and detail capture, combining multiple laser line technologies and advanced photogrammetry to scan complex geometries accurately.
Equipped with a 3.2MP high-resolution camera and 26 laser lines (including 7 parallel lines for fine detail and a single line for deep-hole scanning), this scanner achieves a scan accuracy of up to 0.02 mm and volumetric accuracy as precise as 0.02 mm + 0.015 mm per meter when using photogrammetry. Its rapid measurement rate of 1,850,000 points per second ensures efficient yet detailed scanning workflows.

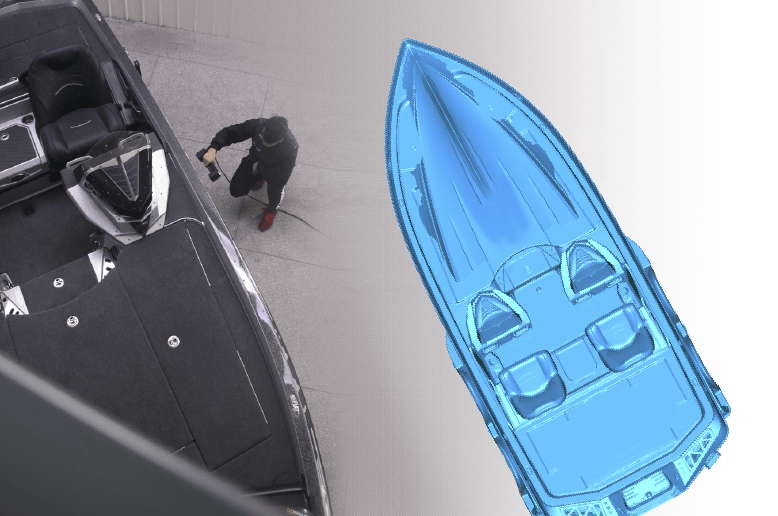

Designed for versatility, the FreeScan UE Pro can scan challenging materials, including black and reflective surfaces, without excessive preparation, thanks to its advanced laser technology. The integrated video photogrammetry system enhances global precision and eliminates the need for coded markers on large objects. Lightweight and ergonomic, it supports user-friendly operation and quick setup with magnetic marker balls.
Features
Multiple Laser Line Modes
26 laser lines including 7 parallel for detail, plus single laser line for deep-hole scanning
Integrated Video Photogrammetry
Enhances volumetric accuracy and reduces dependence on markers
Material Flexibility
Effective scanning of black and reflective surfaces without excessive prep
Lightweight and Ergonomic
Only 840 grams with an intuitive software interface for ease of use
High Precision Scanning
Up to 0.02 mm scan accuracy with volumetric precision for metrology-grade results
Technical product details
SKUC8866
EAN6970163088983
Weight10000 g
Measurement
AccuracyUp to 0.02 mm scan accuracy
Range200-300 mm working distance
The Shining 3D FreeScan UE Pro is a high-precision metrology-grade handheld 3D laser scanner tailored for demanding applications such as quality control, reverse engineering, and additive manufacturing. It delivers exceptional accuracy and detail capture, combining multiple laser line technologies and advanced photogrammetry to scan complex geometries accurately.
Equipped with a 3.2MP high-resolution camera and 26 laser lines (including 7 parallel lines for fine detail and a single line for deep-hole scanning), this scanner achieves a scan accuracy of up to 0.02 mm and volumetric accuracy as precise as 0.02 mm + 0.015 mm per meter when using photogrammetry. Its rapid measurement rate of 1,850,000 points per second ensures efficient yet detailed scanning workflows.
Designed for versatility, the FreeScan UE Pro can scan challenging materials, including black and reflective surfaces, without excessive preparation, thanks to its advanced laser technology. The integrated video photogrammetry system enhances global precision and eliminates the need for coded markers on large objects. Lightweight and ergonomic, it supports user-friendly operation and quick setup with magnetic marker balls.
Features
Multiple Laser Line Modes
26 laser lines including 7 parallel for detail, plus single laser line for deep-hole scanning
Integrated Video Photogrammetry
Enhances volumetric accuracy and reduces dependence on markers
Material Flexibility
Effective scanning of black and reflective surfaces without excessive prep
Lightweight and Ergonomic
Only 840 grams with an intuitive software interface for ease of use
High Precision Scanning
Up to 0.02 mm scan accuracy with volumetric precision for metrology-grade results
Technical product details
SKUC8866
EAN6970163088983
Weight10000 g
Measurement
AccuracyUp to 0.02 mm scan accuracy
Range200-300 mm working distance
Fields of application
Where FreeScan UE Pro is used
Industries
Applications
