Shining 3D
FreeScan UE Nova
Wireless metrology handheld scanner with an extra-large 2.6 × 2.2 m field of view, 50 laser lines and video photogrammetry.
C010204SKU23000 gWeighthardwareProduct type
01 / 05
Shining 3D FreeScan UE Nova
Wireless metrology handheld scanner with an extra-large 2.6 × 2.2 m field of view, 50 laser lines and video photogrammetry.
€39,999.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Bonus
€338.00 value at no extra cost
Video Workflow LibraryIncluded in the packageIncluded€249.00
FreeScan, EinScan & Einstar PackageIncluded in the packageIncluded€89.00
Is this the right system for your application?We review your application, component and workflow with you.
or
All details
Product information
The FreeScan UE Nova is a wide-range wireless laser handheld 3D scanner for metrology, setting a new standard with its unmatched field of view. With an FOV of up to 2.6 × 2.2 m and a maximum scanning distance of 2.6 m it captures large objects highly efficiently.
50 laser lines deliver fast data capture, while integrated wireless modules provide real-time transmission at high frame rates and stability. Detachable hot-swappable batteries guarantee continuous scanning during long projects or in remote locations.
Patented video photogrammetry (VPG) works without coded markers and, combined with the calibration rod, delivers volumetric accuracy of 0.072 + 0.012 mm/m. Intelligent resolution control and a PTB-certified inspection module complete the measurement workflow.
Key specs: depth of field 2,300 mm (300–2,600 mm), net weight 1.6 kg, wireless and wired (fiber optic) operation, acceptance test to VDI/VDE 2634 Part 3.
Features

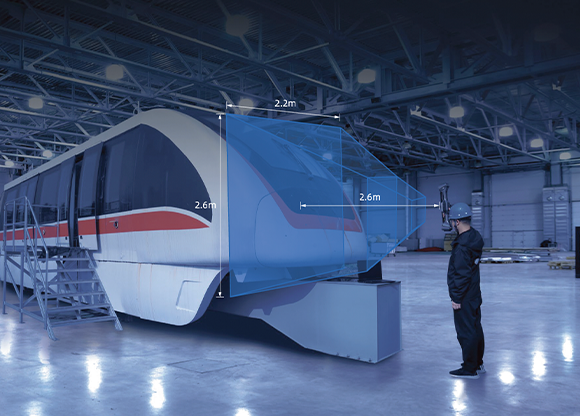

XXL field of view
Up to 2.6 × 2.2 m FOV at a maximum scan distance of 2.6 m.
50 laser lines
High scanning speed for large components.

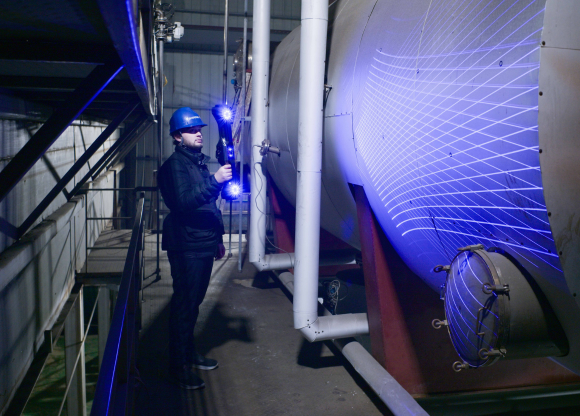

Wireless with hot-swap battery
Real-time radio transfer and uninterrupted scanning.

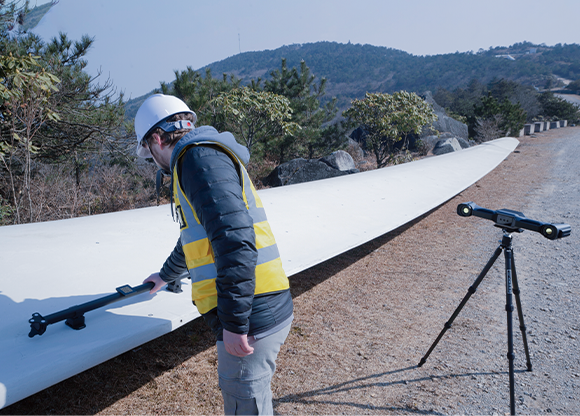

Video photogrammetry (VPG)
No coded markers required; volumetric accuracy of 0.072 + 0.012 mm/m with the scale bar.
Certified measurement workflow
PTB-certified inspection module, acceptance testing to VDI/VDE 2634 Part 3.
Light and flexible
1.6 kg, 2,300 mm depth of field, wireless or fibre-optic tethered.

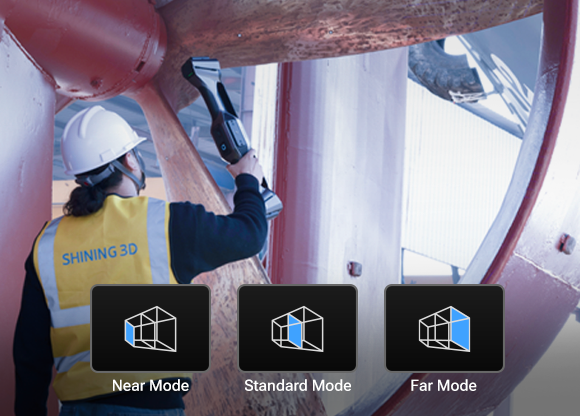

RangeFlexible field of view up to 2,600 x 2,200 mm
The FreeScan UE Nova is a wide-range wireless laser handheld 3D scanner for metrology, setting a new standard with its unmatched field of view. With an FOV of up to 2.6 × 2.2 m and a maximum scanning distance of 2.6 m it captures large objects highly efficiently.
50 laser lines deliver fast data capture, while integrated wireless modules provide real-time transmission at high frame rates and stability. Detachable hot-swappable batteries guarantee continuous scanning during long projects or in remote locations.
Patented video photogrammetry (VPG) works without coded markers and, combined with the calibration rod, delivers volumetric accuracy of 0.072 + 0.012 mm/m. Intelligent resolution control and a PTB-certified inspection module complete the measurement workflow.
Key specs: depth of field 2,300 mm (300–2,600 mm), net weight 1.6 kg, wireless and wired (fiber optic) operation, acceptance test to VDI/VDE 2634 Part 3.
Features
XXL field of view
Up to 2.6 × 2.2 m FOV at a maximum scan distance of 2.6 m.
50 laser lines
High scanning speed for large components.
Wireless with hot-swap battery
Real-time radio transfer and uninterrupted scanning.
Video photogrammetry (VPG)
No coded markers required; volumetric accuracy of 0.072 + 0.012 mm/m with the scale bar.
Certified measurement workflow
PTB-certified inspection module, acceptance testing to VDI/VDE 2634 Part 3.
Light and flexible
1.6 kg, 2,300 mm depth of field, wireless or fibre-optic tethered.
