Buy or lease Shining 3D Einstar | Scankraft
25+ years of metrology experience
Why Scankraft?
We are a team of technicians and engineers and test every scanner ourselves before recommending it. You receive a solution that works in your real workflow.
Personal project consultationWe assess your part, tolerances and process together.Fast support from AustriaDirect access to experienced users.
Workflow library includedLive demo or trial unit available
Shining 3D
Einstar
The Shining 3D Einstar is a handheld 3D scanner featuring infrared VCSEL light and an RGB camera for high-quality, full-color 3D data capture.
SHINING-3D-EINSTARSKU1VariantshardwareProduct type
01 / 09
Shining 3D Einstar
The Shining 3D Einstar is a handheld 3D scanner featuring infrared VCSEL light and an RGB camera for high-quality, full-color 3D data capture.
€815.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Bonus
€338.00 value at no extra cost
Video Workflow LibraryIncluded in the packageIncluded€249.00
FreeScan, EinScan & Einstar PackageIncluded in the packageIncluded€89.00
Secure paymentShips from AustriaPersonal support
All details
Product information
The Shining 3D Einstar is a compact and lightweight handheld 3D scanner equipped with advanced infrared VCSEL structured light technology, delivering high-precision scans with point distances ranging from 0.1 mm to 3 mm. Its capability to capture high-density point clouds at 980,000 points per second and 14 frames per second ensures detailed and accurate 3D models. The built-in RGB camera provides vivid, high-fidelity color textures, making it ideal for scanning a wide range of objects, including dark or shiny surfaces that are typically challenging for other scanners.
This scanner offers versatile scan modes including object scanning in various sizes, portrait scanning with hair capture mode, and supports both texture on and off settings. It also features multiple alignment options, such as feature-based, hybrid, texture, and global marker alignment, enhancing ease of use and scan accuracy. With an effective working distance of 160 mm to 1400 mm and a maximum field of view of 434 mm by 379 mm, it accommodates diverse scanning scenarios.

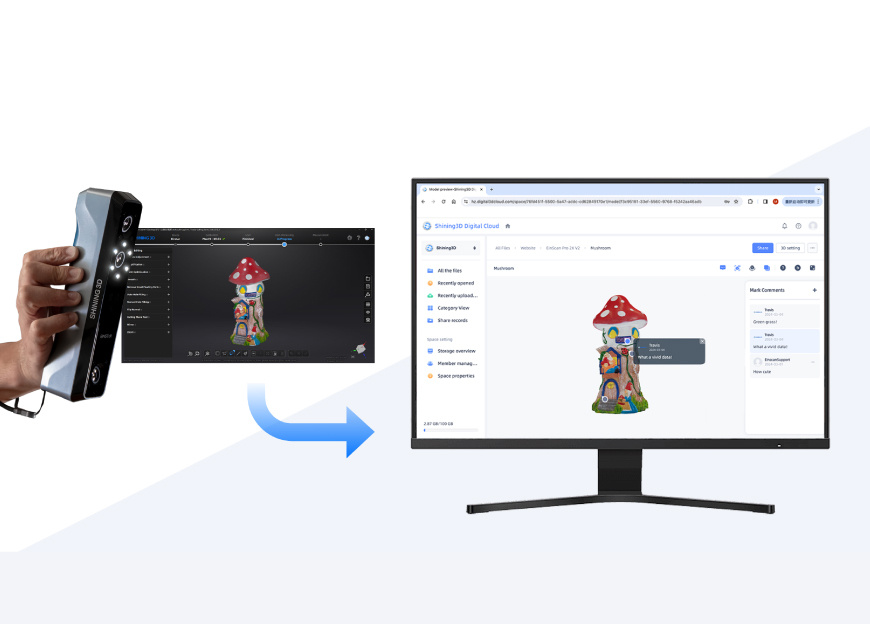

The Shining 3D Einstar is supported by user-friendly EXStar software that simplifies editing processes like mesh optimization and hole filling, making it perfect for applications in 3D printing, design, digital archiving, education, VR/AR, medical fields, and art. Its ergonomic design, including a wrist strap for safety, and compatibility with major 3D file formats (OBJ, STL, PLY, P3, 3MF) further enhance its appeal for professionals and enthusiasts alike.
Features
Advanced Scanning Technology
Uses infrared VCSEL structured light for precise and reliable scanning, even on dark or shiny surfaces.
High Resolution
Point distance from 0.1 mm to 3 mm allows detailed and accurate 3D captures.
Versatile Scan Modes

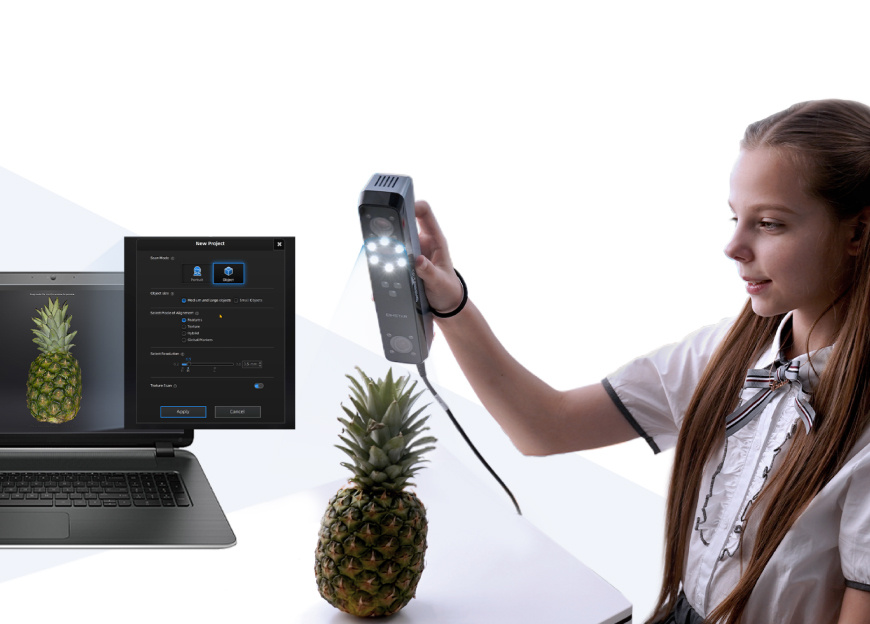

Supports multiple modes including object (small/medium/large) and portrait with special hair capture mode.
Multiple Alignment Methods
Includes feature-based, hybrid, texture, and global marker alignment options for ease of use and better accuracy.

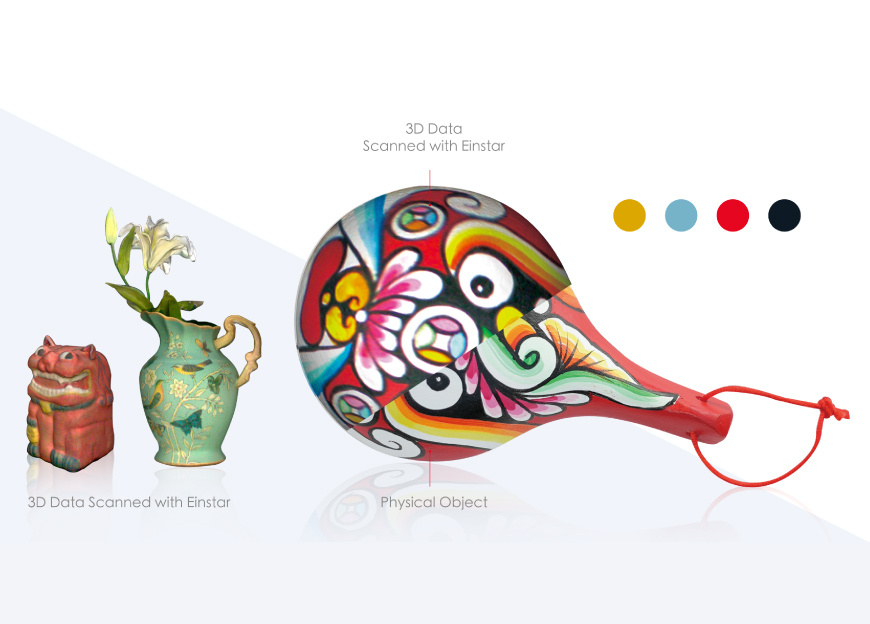

Built-in RGB Camera
Captures high-fidelity color textures for realistic 3D models.
Technical product details
SKUSHINING-3D-EINSTAR
Measurement
AccuracyPoint distance 0.1 mm to 3 mm
Range160 mm to 1400 mm
The Shining 3D Einstar is a compact and lightweight handheld 3D scanner equipped with advanced infrared VCSEL structured light technology, delivering high-precision scans with point distances ranging from 0.1 mm to 3 mm. Its capability to capture high-density point clouds at 980,000 points per second and 14 frames per second ensures detailed and accurate 3D models. The built-in RGB camera provides vivid, high-fidelity color textures, making it ideal for scanning a wide range of objects, including dark or shiny surfaces that are typically challenging for other scanners.
This scanner offers versatile scan modes including object scanning in various sizes, portrait scanning with hair capture mode, and supports both texture on and off settings. It also features multiple alignment options, such as feature-based, hybrid, texture, and global marker alignment, enhancing ease of use and scan accuracy. With an effective working distance of 160 mm to 1400 mm and a maximum field of view of 434 mm by 379 mm, it accommodates diverse scanning scenarios.
The Shining 3D Einstar is supported by user-friendly EXStar software that simplifies editing processes like mesh optimization and hole filling, making it perfect for applications in 3D printing, design, digital archiving, education, VR/AR, medical fields, and art. Its ergonomic design, including a wrist strap for safety, and compatibility with major 3D file formats (OBJ, STL, PLY, P3, 3MF) further enhance its appeal for professionals and enthusiasts alike.
Features
Advanced Scanning Technology
Uses infrared VCSEL structured light for precise and reliable scanning, even on dark or shiny surfaces.
High Resolution
Point distance from 0.1 mm to 3 mm allows detailed and accurate 3D captures.
Versatile Scan Modes
Supports multiple modes including object (small/medium/large) and portrait with special hair capture mode.
Multiple Alignment Methods
Includes feature-based, hybrid, texture, and global marker alignment options for ease of use and better accuracy.
Built-in RGB Camera
Captures high-fidelity color textures for realistic 3D models.
Technical product details
SKUSHINING-3D-EINSTAR
Measurement
AccuracyPoint distance 0.1 mm to 3 mm
Range160 mm to 1400 mm
Fields of application
Where Einstar is used
Industries
Applications
