Shining 3D
EinScan HX

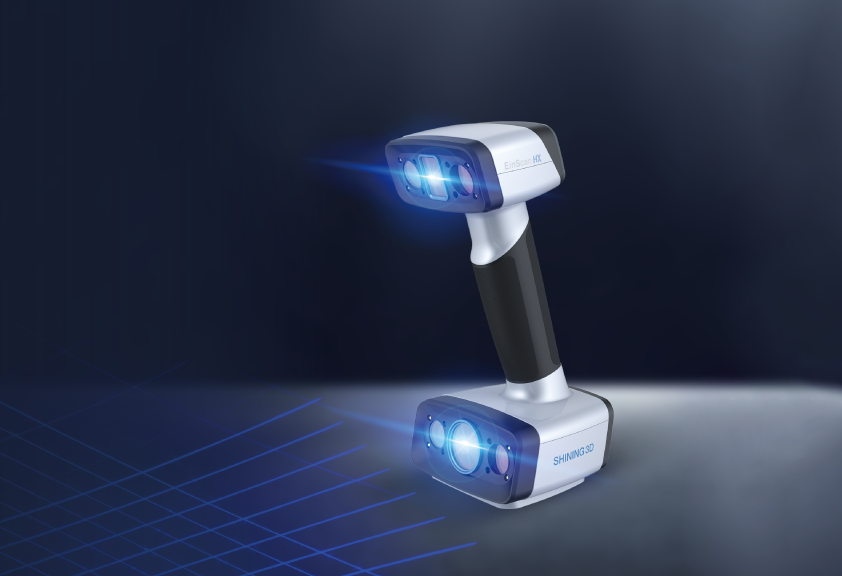

Handheld scanner combining blue laser and blue LED light for a wide range of part sizes.
SHINING-3D-EINSCAN-HXSKU1VariantshardwareProduct type
01 / 08
Shining 3D EinScan HX
Handheld scanner combining blue laser and blue LED light for a wide range of part sizes.
Price on request
excl. VAT · plus shipping
Price and availability are provided on request.
workflow library includedExpert consultation
All details
Product information

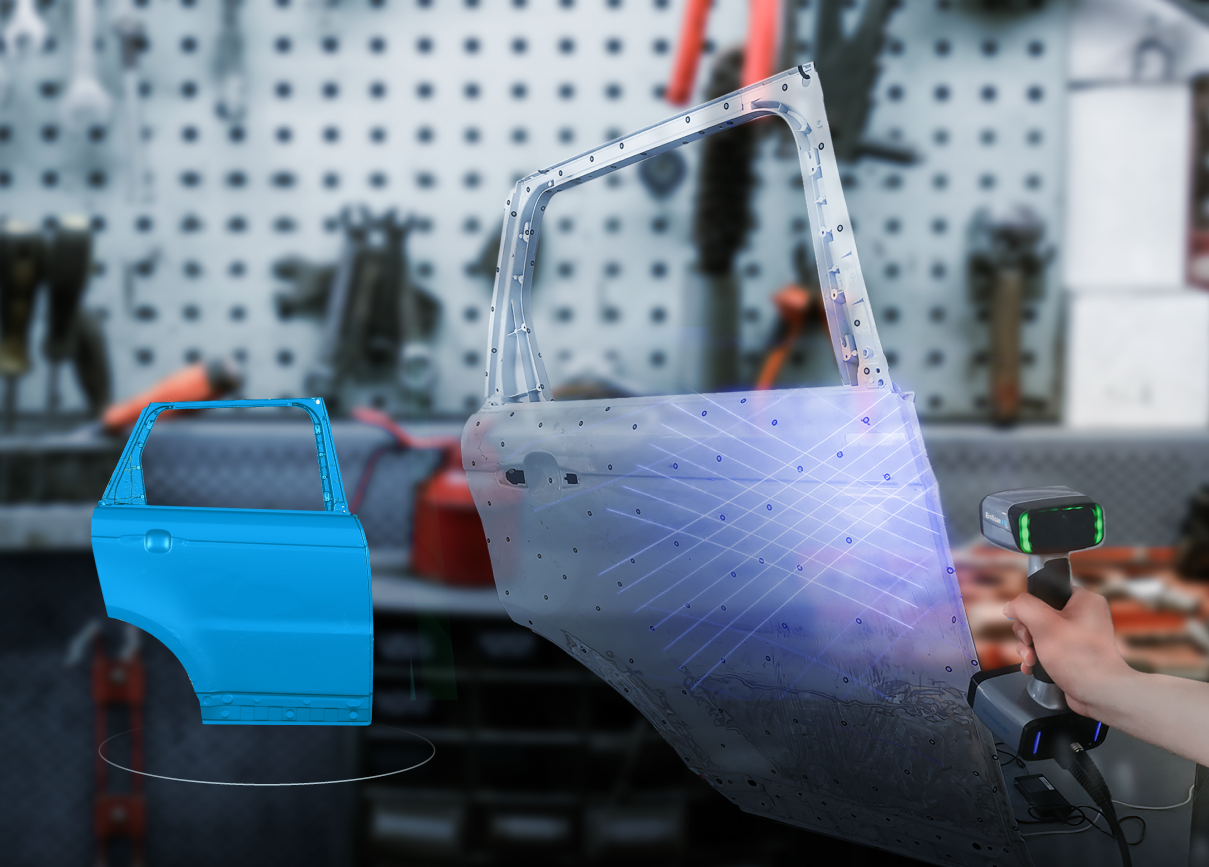

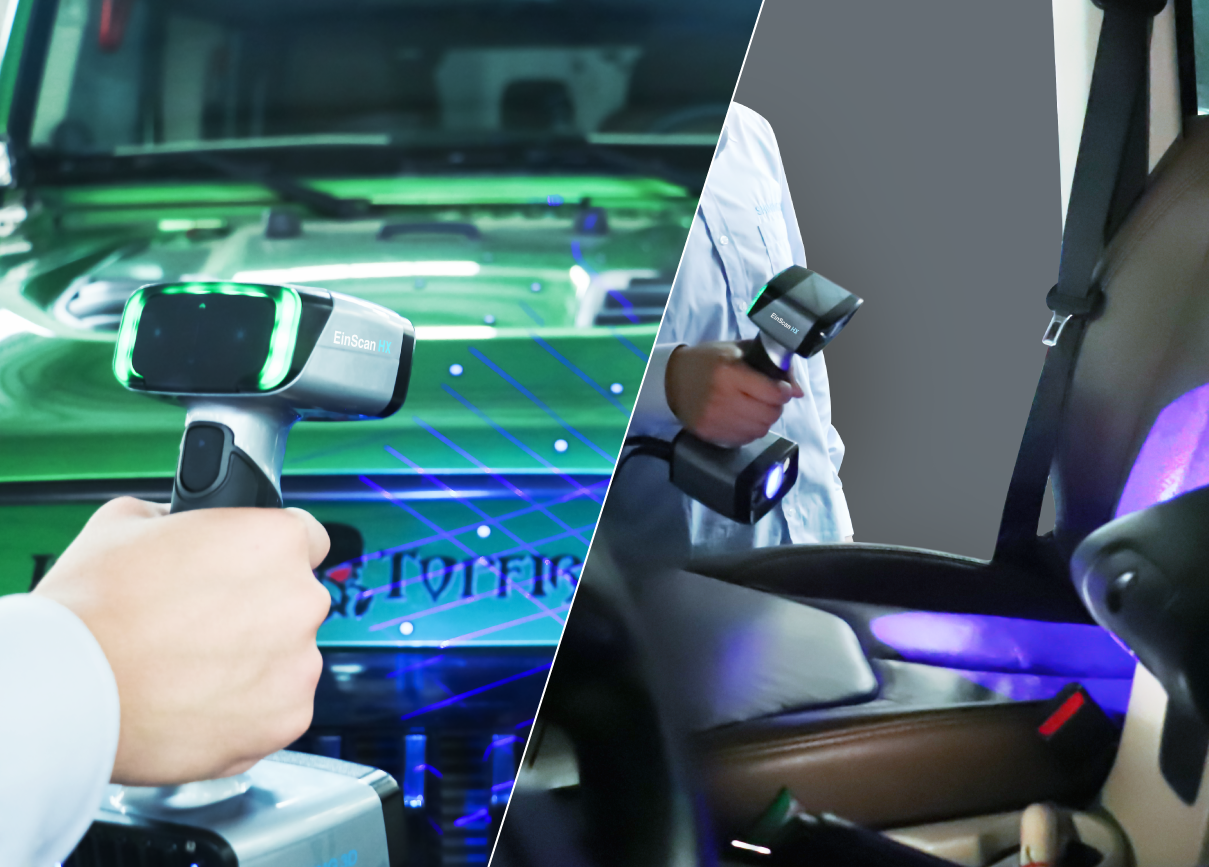

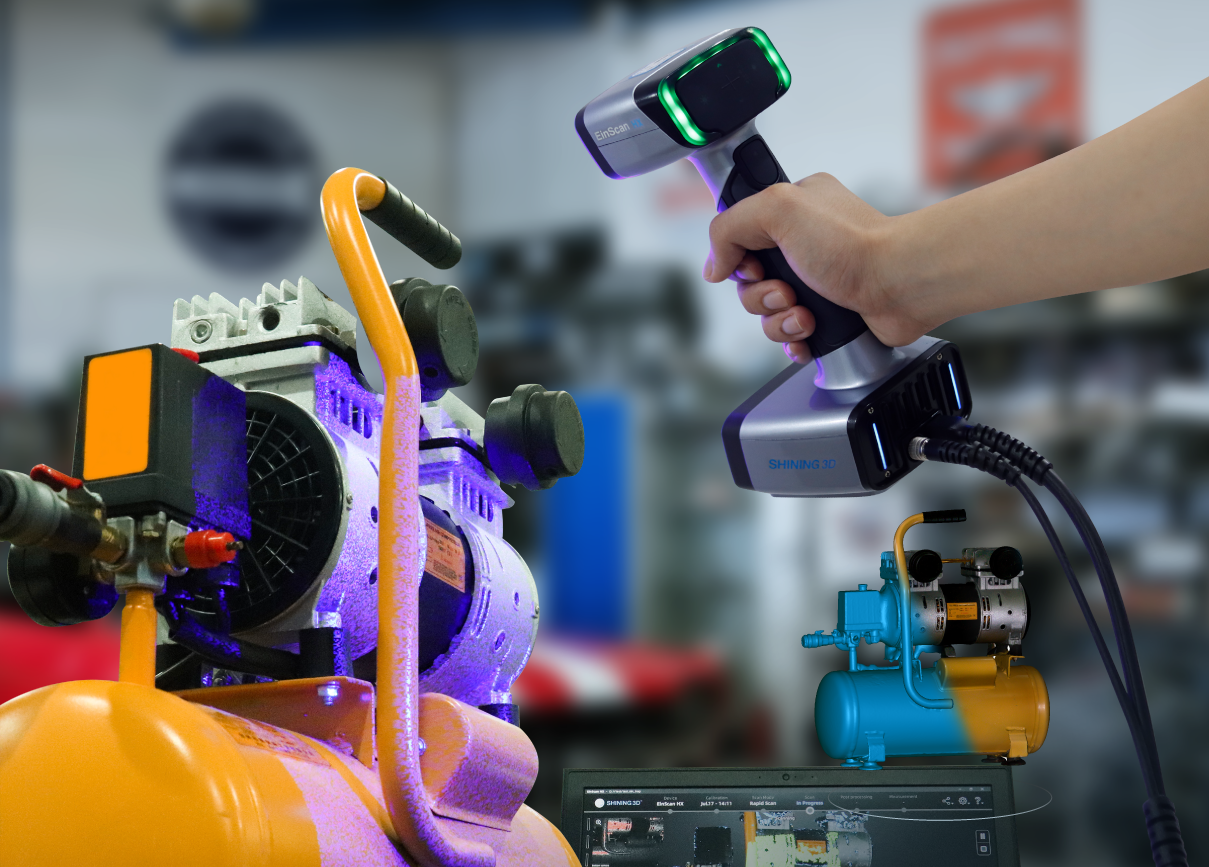

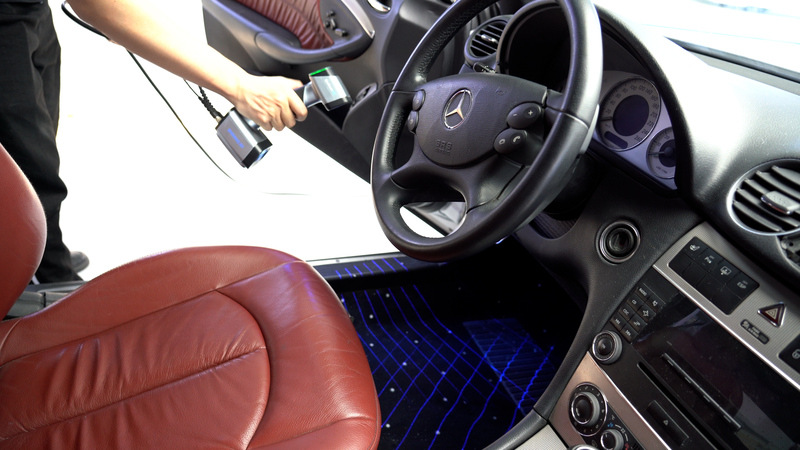

EinScan HX integrates blue LED light and blue laser in one handheld scanner. Rapid mode with LED light digitises quickly, while laser mode is less sensitive to ambient light and performs better on shiny or dark surfaces. Together they cover small detailed parts through to large objects, reaching an accuracy of up to 0.04 mm in laser mode.
Features
Hybrid light source
Blue LED light and blue laser in one handheld scanner.
Rapid mode
LED light for fast digitising of larger surfaces.
Laser mode up to 0.04 mm
Less sensitive to ambient light, strong on shiny and dark surfaces.
Point distance from 0.05 mm
Fine detail with a field of view up to 420 x 440 mm.

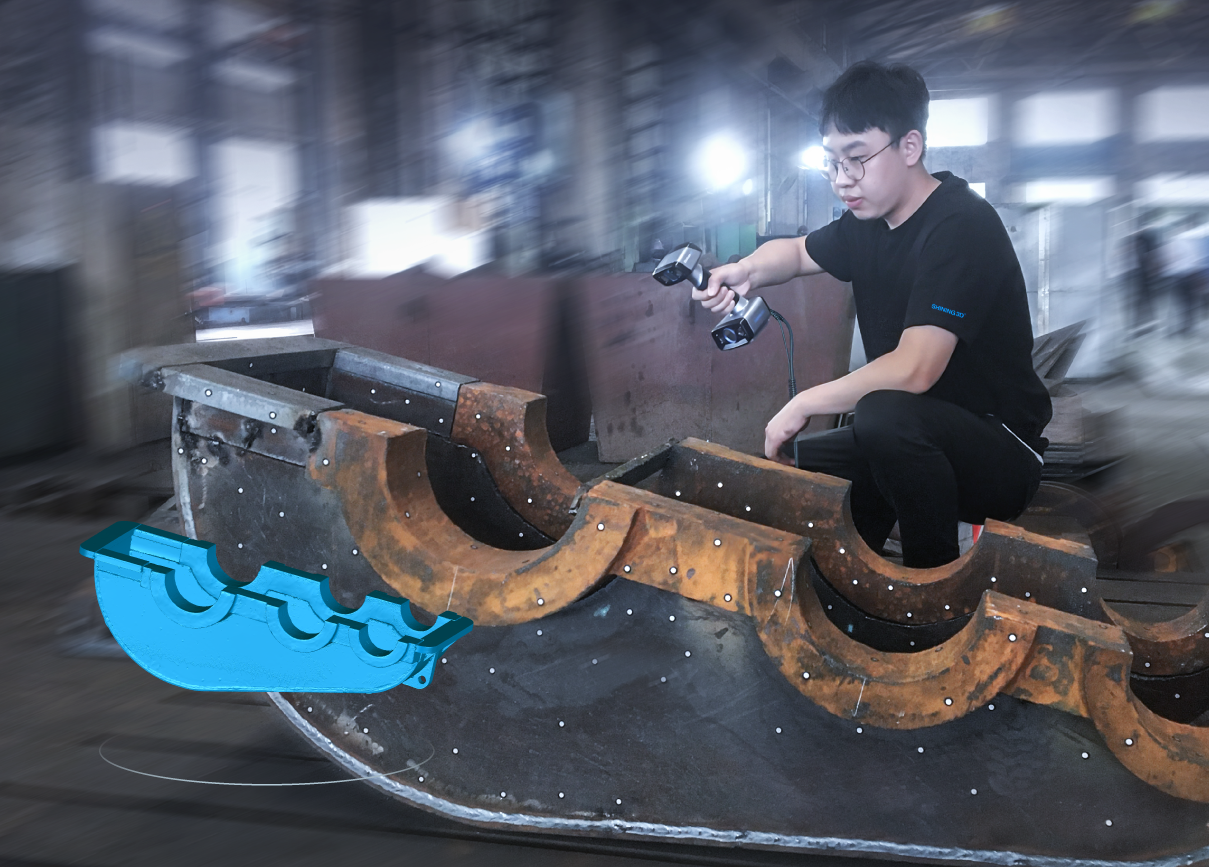

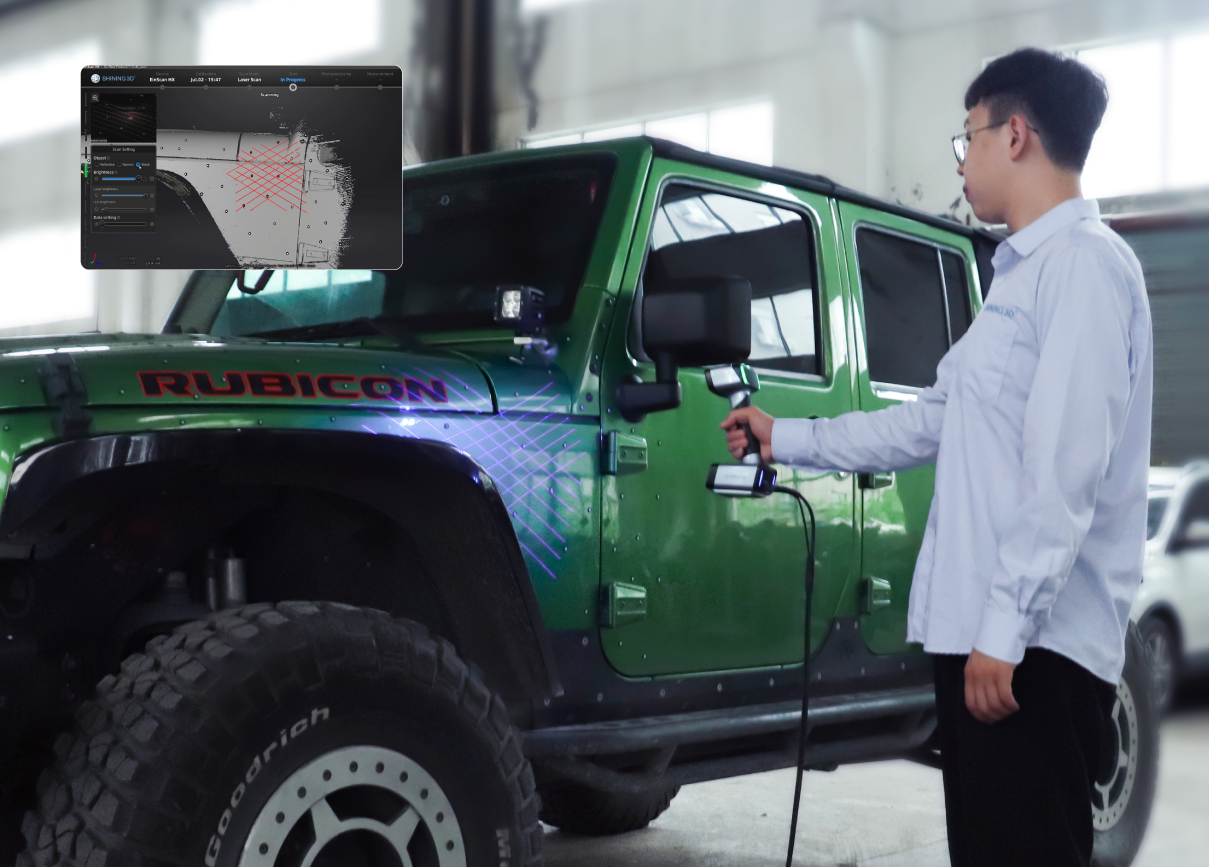

Wide size range
From small detailed parts through to large objects.
Technical product details
SKUSHINING-3D-EINSCAN-HX
Measurement
AccuracyUp to 0.04 mm (laser mode) / 0.05 mm (rapid mode)
RangeMax. field of view 420 x 440 mm, working distance 470 mm
EinScan HX integrates blue LED light and blue laser in one handheld scanner. Rapid mode with LED light digitises quickly, while laser mode is less sensitive to ambient light and performs better on shiny or dark surfaces. Together they cover small detailed parts through to large objects, reaching an accuracy of up to 0.04 mm in laser mode.
Features
Hybrid light source
Blue LED light and blue laser in one handheld scanner.
Rapid mode
LED light for fast digitising of larger surfaces.
Laser mode up to 0.04 mm
Less sensitive to ambient light, strong on shiny and dark surfaces.
Point distance from 0.05 mm
Fine detail with a field of view up to 420 x 440 mm.
Wide size range
From small detailed parts through to large objects.
Technical product details
SKUSHINING-3D-EINSCAN-HX
Measurement
AccuracyUp to 0.04 mm (laser mode) / 0.05 mm (rapid mode)
RangeMax. field of view 420 x 440 mm, working distance 470 mm
