Buy or lease Shining 3D AutoScan Inspec | Scankraft
25+ years of metrology experience
Why Scankraft?
We are a team of technicians and engineers and test every scanner ourselves before recommending it. You receive a solution that works in your real workflow.
Personal project consultationWe assess your part, tolerances and process together.Fast support from AustriaDirect access to experienced users.
Workflow library includedLive demo or trial unit available
Shining 3D
AutoScan Inspec
The Shining 3D AutoScan Inspec is an automated desktop 3D inspection scanner using blue LED technology to deliver up to 10-micron accuracy.
SHINING-3D-AUTOSCAN-INSPECSKU1VariantshardwareProduct type
01 / 09
Shining 3D AutoScan Inspec
The Shining 3D AutoScan Inspec is an automated desktop 3D inspection scanner using blue LED technology to deliver up to 10-micron accuracy.
€9,990.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Is this the right system for your application?We review your application, component and workflow with you.
or
All details
Product information
The Shining 3D AutoScan Inspec is a fully automatic desktop 3D inspection scanner engineered for precise, high-accuracy scanning of small and complex objects. It is ideally suited for quality control, product design, reverse engineering, and inspection tasks. Featuring a user-friendly interface and AI-driven automatic scanning algorithms, this scanner enables efficient one-click operation with no manual calibration required. Utilizing advanced blue LED structured light technology and dual 5MP cameras, it delivers metrology-grade accuracy up to 10 microns, capturing fine surface details with exceptional clarity. The integrated 3-axis automated turntable allows comprehensive multi-angle scanning within a compact scanning volume, ensuring thorough three-dimensional data acquisition. Its modular and portable design facilitates easy integration into laboratory or workshop environments. The device supports full-color texture scanning and exports data in widely compatible formats including STL, OBJ, and PLY, operating seamlessly with major CAD/CAM software such as Geomagic Control X and PolyWorks. Overall, the AutoScan Inspec combines precision, automation, and ease of use, making it a reliable solution for industrial metrology and inspection needs.
Features
Fully Automated Scanning
One-click operation with AI intelligent scanning algorithms for effortless and efficient use.
High Precision
Metrology-grade accuracy of up to 0.01 mm (10 microns) enabled by blue LED structured light technology.
Dual 5MP Cameras
Capture sharp, detailed images and support full-color texture scanning for comprehensive data.
3-Axis Automated Turntable
Enables multi-angle scanning within a field of view around 100×100×75 mm, ensuring complete surface capture.
Advanced Software Compatibility

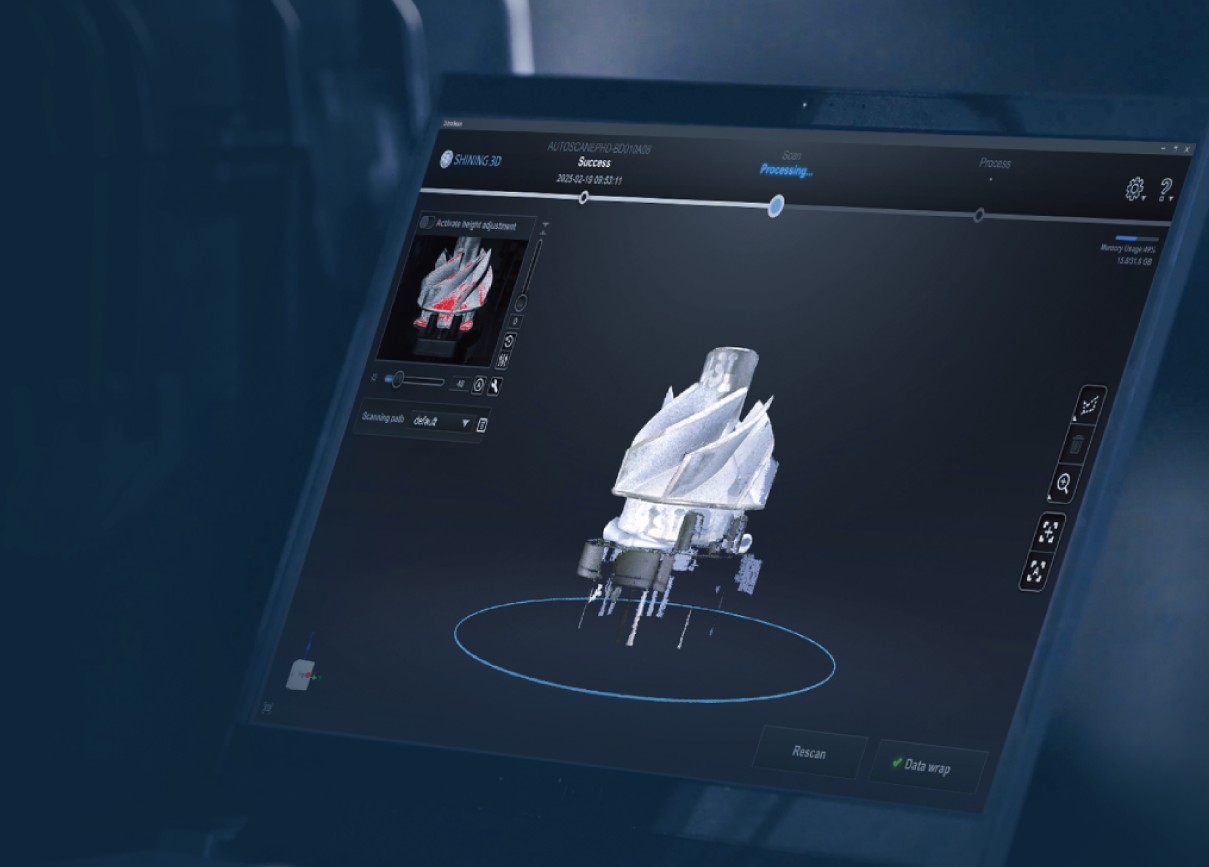

Comes with Ultrascan software for automated preprocessing, plus compatibility with CAD/CAM tools like Geomagic and PolyWorks.
Technical product details
SKUSHINING-3D-AUTOSCAN-INSPEC
Measurement
Accuracy0.01 mm
Range100×100×75 mm
The Shining 3D AutoScan Inspec is a fully automatic desktop 3D inspection scanner engineered for precise, high-accuracy scanning of small and complex objects. It is ideally suited for quality control, product design, reverse engineering, and inspection tasks. Featuring a user-friendly interface and AI-driven automatic scanning algorithms, this scanner enables efficient one-click operation with no manual calibration required. Utilizing advanced blue LED structured light technology and dual 5MP cameras, it delivers metrology-grade accuracy up to 10 microns, capturing fine surface details with exceptional clarity. The integrated 3-axis automated turntable allows comprehensive multi-angle scanning within a compact scanning volume, ensuring thorough three-dimensional data acquisition. Its modular and portable design facilitates easy integration into laboratory or workshop environments. The device supports full-color texture scanning and exports data in widely compatible formats including STL, OBJ, and PLY, operating seamlessly with major CAD/CAM software such as Geomagic Control X and PolyWorks. Overall, the AutoScan Inspec combines precision, automation, and ease of use, making it a reliable solution for industrial metrology and inspection needs.
Features
Fully Automated Scanning
One-click operation with AI intelligent scanning algorithms for effortless and efficient use.
High Precision
Metrology-grade accuracy of up to 0.01 mm (10 microns) enabled by blue LED structured light technology.
Dual 5MP Cameras
Capture sharp, detailed images and support full-color texture scanning for comprehensive data.
3-Axis Automated Turntable
Enables multi-angle scanning within a field of view around 100×100×75 mm, ensuring complete surface capture.
Advanced Software Compatibility
Comes with Ultrascan software for automated preprocessing, plus compatibility with CAD/CAM tools like Geomagic and PolyWorks.
Technical product details
SKUSHINING-3D-AUTOSCAN-INSPEC
Measurement
Accuracy0.01 mm
Range100×100×75 mm
Fields of application
Where AutoScan Inspec is used
Industries
Applications
