Buy or lease Hi-Target V600L | Scankraft
25+ years of metrology experience
Why Scankraft?
We are a team of technicians and engineers and test every scanner ourselves before recommending it. You receive a solution that works in your real workflow.
Personal project consultationWe assess your part, tolerances and process together.Fast support from AustriaDirect access to experienced users.
Workflow library includedLive demo or trial unit available
Hi-Target
V600L
Laser RTK receiver with iHand55 controller 3+32G and Hi-Survey Road.
HI-TARGET-V600LSKU1VariantshardwareProduct type
01 / 02
Hi-Target V600L
Laser RTK receiver with iHand55 controller 3+32G and Hi-Survey Road.
€3,440.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Secure paymentShips from AustriaPersonal support
All details
Product information

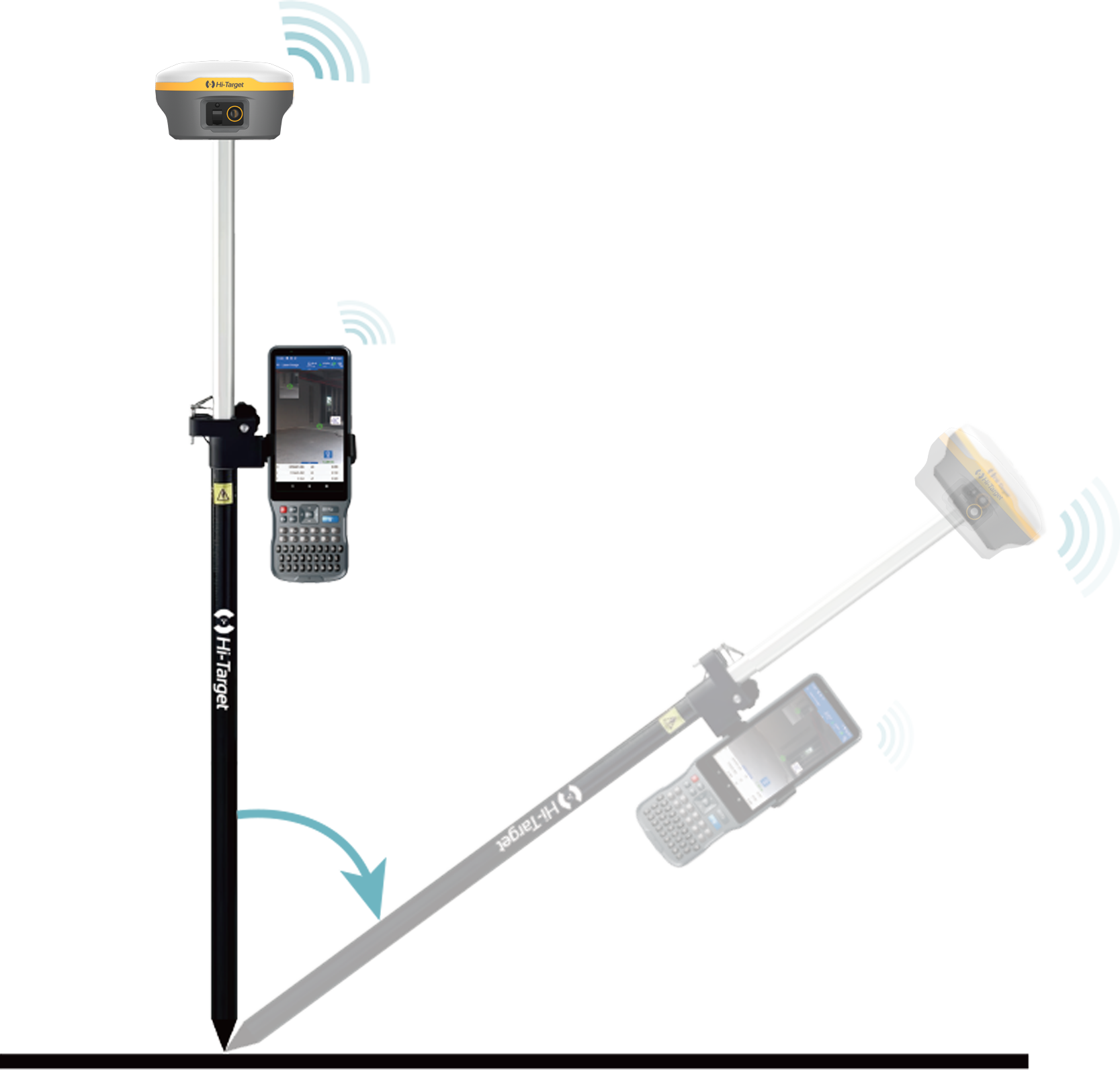

The V600L is Hi-Target''s next-generation Laser RTK: GNSS receiver, IMU, dual camera and a visible laser in one compact housing. 1,408 channels with full constellation support plus B2b-PPP and Galileo E6-HAS deliver fast, reliable fixes (typical initialisation < 10 s).
The visible measuring laser (Class 3R, optimal range up to 100 m) captures inaccessible points contactlessly – façades, water edges, traffic areas. The front camera supports image-assisted aiming and real-scene CAD stakeout, while the bottom camera enables AR stakeout with 2 cm accuracy. The 200 Hz IMU calibrates automatically for tilt surveying up to 60°. The internal UHF radio with LoRa reaches up to 15 km, complemented by NFC pairing, 2.4/5.8 GHz Wi-Fi, Bluetooth 5.2 and LTE. IP68, MIL-STD-810G, 1.8 m drop rating, up to 16 h runtime and charging from any standard USB-C charger or power bank. Supplied with the iHand55 controller and Hi-Survey Road.
Features
Measure inaccessible points
A visible Class 3R laser captures façades, water edges and traffic areas contactlessly – optimal up to 100 m.
Fix in under 10 seconds
1,408 channels with full constellation support, B2b PPP and Galileo E6-HAS.
Stakeout in the live image
Front camera for image-guided aiming and CAD stakeout, bottom camera for AR stakeout at 2 cm.
Tilt up to 60°
The 200 Hz IMU calibrates automatically – no levelling required.
Radio up to 15 km
Internal UHF with LoRa, plus NFC pairing, 2.4/5.8 GHz Wi-Fi, Bluetooth 5.2 and LTE.
Built for site
IP68, MIL-STD-810G, 1.8 m drop rating, up to 16 h runtime and charging from any USB-C charger or power bank.
Technical product details
SKUHI-TARGET-V600L
Measurement
AccuracyRTK H 8 mm + 1 ppm · V 15 mm + 1 ppm · static 2.5 mm + 0.5 ppm · image staking 2 cm
RangeLaser optimal up to 100 m (50 m optional) · UHF up to 15 km
The V600L is Hi-Target''s next-generation Laser RTK: GNSS receiver, IMU, dual camera and a visible laser in one compact housing. 1,408 channels with full constellation support plus B2b-PPP and Galileo E6-HAS deliver fast, reliable fixes (typical initialisation < 10 s).
The visible measuring laser (Class 3R, optimal range up to 100 m) captures inaccessible points contactlessly – façades, water edges, traffic areas. The front camera supports image-assisted aiming and real-scene CAD stakeout, while the bottom camera enables AR stakeout with 2 cm accuracy. The 200 Hz IMU calibrates automatically for tilt surveying up to 60°. The internal UHF radio with LoRa reaches up to 15 km, complemented by NFC pairing, 2.4/5.8 GHz Wi-Fi, Bluetooth 5.2 and LTE. IP68, MIL-STD-810G, 1.8 m drop rating, up to 16 h runtime and charging from any standard USB-C charger or power bank. Supplied with the iHand55 controller and Hi-Survey Road.
Features
Measure inaccessible points
A visible Class 3R laser captures façades, water edges and traffic areas contactlessly – optimal up to 100 m.
Fix in under 10 seconds
1,408 channels with full constellation support, B2b PPP and Galileo E6-HAS.
Stakeout in the live image
Front camera for image-guided aiming and CAD stakeout, bottom camera for AR stakeout at 2 cm.
Tilt up to 60°
The 200 Hz IMU calibrates automatically – no levelling required.
Radio up to 15 km
Internal UHF with LoRa, plus NFC pairing, 2.4/5.8 GHz Wi-Fi, Bluetooth 5.2 and LTE.
Built for site
IP68, MIL-STD-810G, 1.8 m drop rating, up to 16 h runtime and charging from any USB-C charger or power bank.
Technical product details
SKUHI-TARGET-V600L
Measurement
AccuracyRTK H 8 mm + 1 ppm · V 15 mm + 1 ppm · static 2.5 mm + 0.5 ppm · image staking 2 cm
RangeLaser optimal up to 100 m (50 m optional) · UHF up to 15 km
