Buy, rent or lease Hi-Target LS1 Pro | Scankraft
25+ years of metrology experience
Why Scankraft?
We are a team of technicians and engineers and test every scanner ourselves before recommending it. You receive a solution that works in your real workflow.

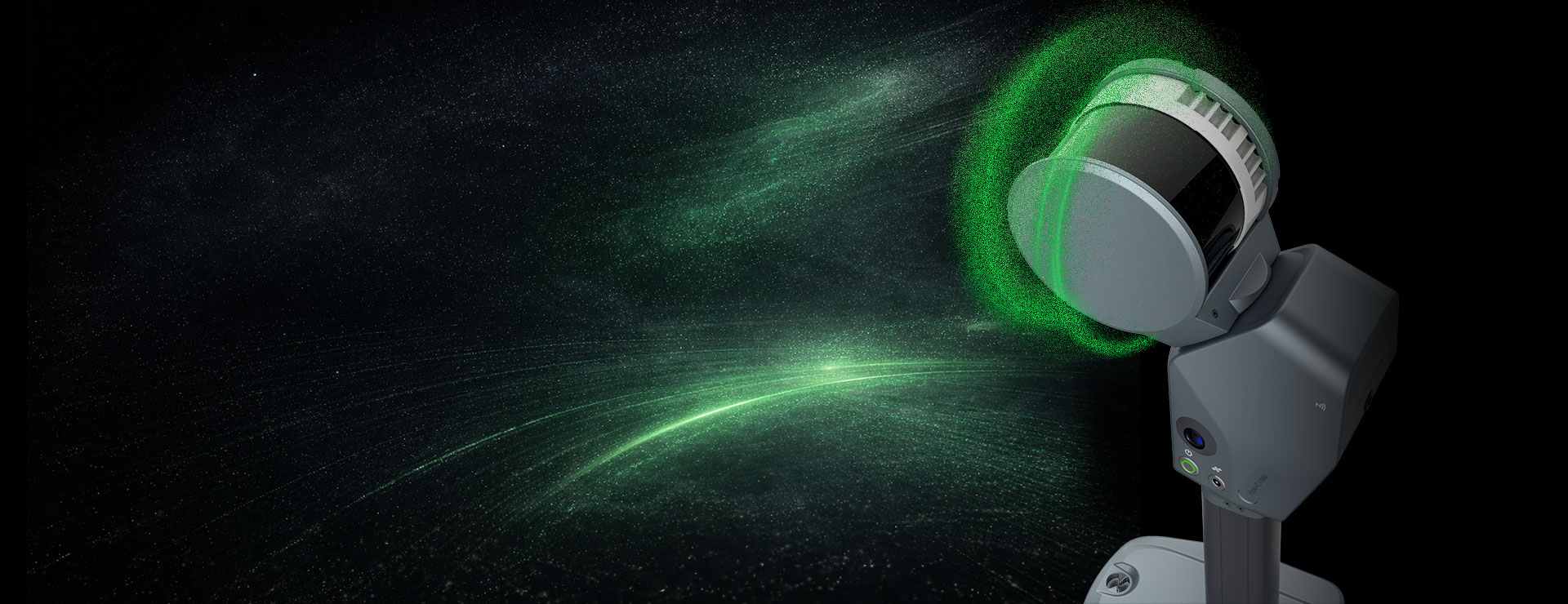

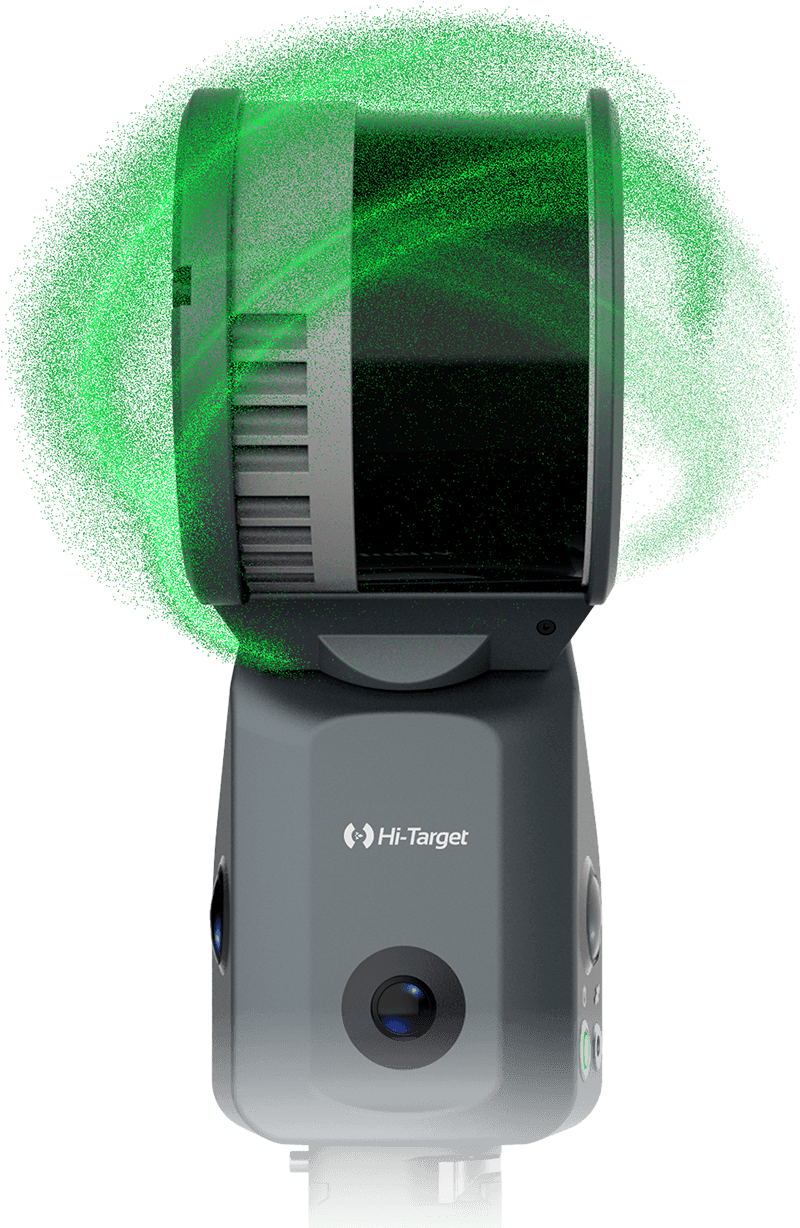

The LS1 Pro is the higher-performance version of the portable, engineering-grade SLAM laser scanner. Its 32-channel LiDAR captures up to 640,000 points/s at ranges up to 300 m and reaches absolute accuracy of up to 2 cm.

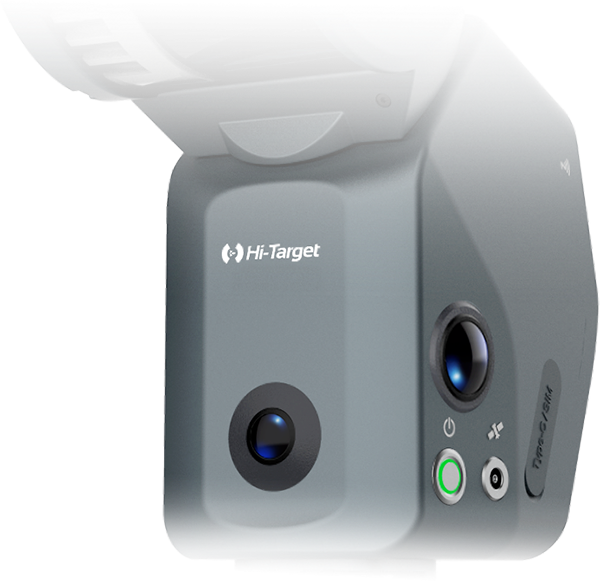

LiDAR, cameras, RTK and SLAM are fully integrated – no external brackets or cables. A live colour point cloud and accuracy heatmap show data quality while scanning, and resume scanning lets you continue interrupted captures. Operate it handheld, on a backpack, vehicle-mounted or on a UAV (SkyPort, external GNSS antenna for airborne work). One dataset yields point cloud, mesh and 3DGS outputs; Hi-LiDAR processes RTK/PPK-SLAM and GCP-SLAM and produces quality reports, sections, profiles and volume comparisons. 2 × 48 MP + 1 × 5 MP cameras, 512 GB SSD, up to 180 min runtime, 1.68 kg, IP54.
Features
Twice the performance
32-channel LiDAR with 640,000 points/s and up to 300 m range.
Up to 2 cm absolute
1 cm point cloud thickness and absolute accuracy to 2 cm RMS – engineering grade, not just an overview scan.
Resume scanning
Interrupted captures are continued instead of restarted.
UAV ready
Handheld, backpack, vehicle or UAV operation via SkyPort with an external GNSS antenna.
Flexible georeferencing
Hi-LiDAR processes RTK, PPK and GCP SLAM including quality reports and volume comparisons.
Long missions
512 GB SSD, up to 180 minutes runtime, 1.68 kg and IP54 protection.
Technical product details
SKUHI-TARGET-LS1-PRO
Measurement
AccuracyRelative accuracy 1 cm · point cloud thickness 1 cm · absolute up to 2 cm (RMS)
RangeRange up to 300 m · 640,000 pts/s · FOV 360° × 280°
The LS1 Pro is the higher-performance version of the portable, engineering-grade SLAM laser scanner. Its 32-channel LiDAR captures up to 640,000 points/s at ranges up to 300 m and reaches absolute accuracy of up to 2 cm.
LiDAR, cameras, RTK and SLAM are fully integrated – no external brackets or cables. A live colour point cloud and accuracy heatmap show data quality while scanning, and resume scanning lets you continue interrupted captures. Operate it handheld, on a backpack, vehicle-mounted or on a UAV (SkyPort, external GNSS antenna for airborne work). One dataset yields point cloud, mesh and 3DGS outputs; Hi-LiDAR processes RTK/PPK-SLAM and GCP-SLAM and produces quality reports, sections, profiles and volume comparisons. 2 × 48 MP + 1 × 5 MP cameras, 512 GB SSD, up to 180 min runtime, 1.68 kg, IP54.
Features
Twice the performance
32-channel LiDAR with 640,000 points/s and up to 300 m range.
Up to 2 cm absolute
1 cm point cloud thickness and absolute accuracy to 2 cm RMS – engineering grade, not just an overview scan.
Resume scanning
Interrupted captures are continued instead of restarted.
UAV ready
Handheld, backpack, vehicle or UAV operation via SkyPort with an external GNSS antenna.
Flexible georeferencing
Hi-LiDAR processes RTK, PPK and GCP SLAM including quality reports and volume comparisons.
Long missions
512 GB SSD, up to 180 minutes runtime, 1.68 kg and IP54 protection.
Technical product details
SKUHI-TARGET-LS1-PRO
Measurement
AccuracyRelative accuracy 1 cm · point cloud thickness 1 cm · absolute up to 2 cm (RMS)
RangeRange up to 300 m · 640,000 pts/s · FOV 360° × 280°
