Hi-Target
iRTK 5
RTK receiver with iHand55 controller 3+32G and Hi-Survey Road.
HI-TARGET-IRTK-5SKU1VariantshardwareProduct type
01 / 02
Hi-Target iRTK 5
RTK receiver with iHand55 controller 3+32G and Hi-Survey Road.
€3,870.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Secure paymentShips from AustriaPersonal support
All details
Product information

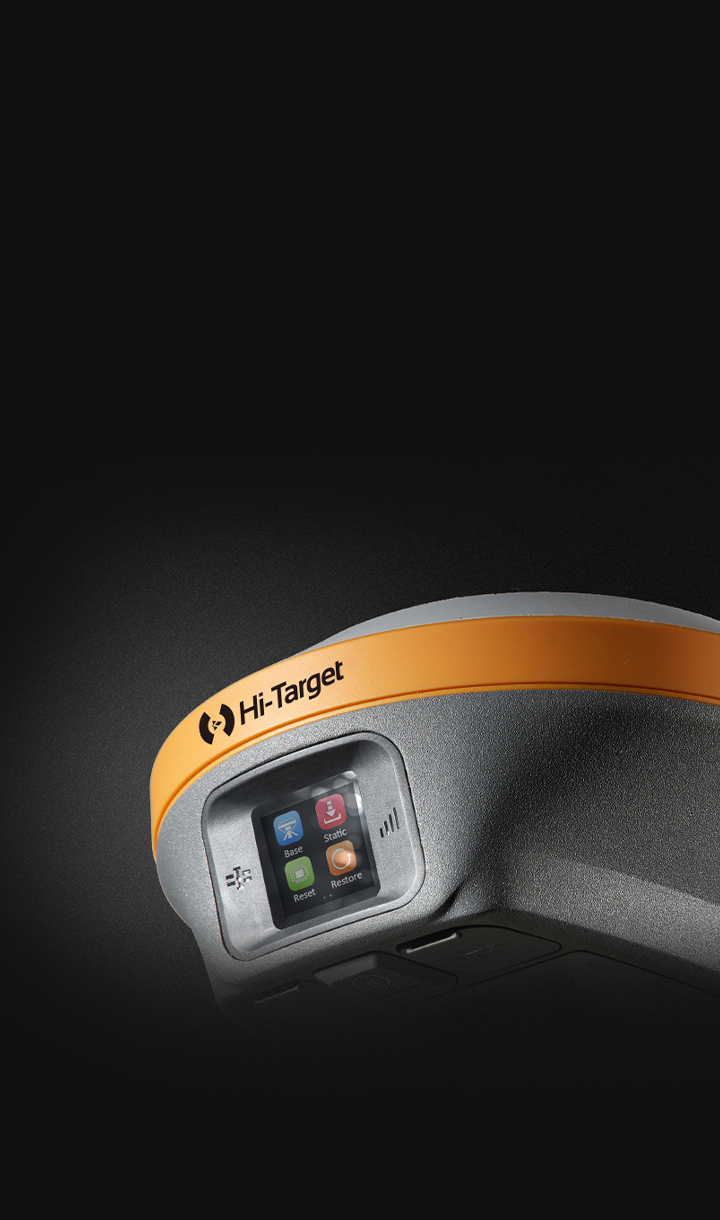

The iRTK5 is a scalable GNSS RTK receiver built around a next-generation GNSS engine with 1,760 channels. Full constellation support (GPS, BeiDou, GLONASS, Galileo, QZSS, NavIC, SBAS, B2b-PPP), a full-wave antenna and improved anti-noise performance deliver fast initialisation and stable fixes.
The built-in IMU enables calibration-free tilt surveying with no levelling – reach the point and measure straight away. Hi-Fix bridges correction outages and keeps the RTK solution alive. The top-mounted 360° omni-directional antenna extends radio range by around 20 %, and the multi-protocol modem supports Hi-Target, TRIMTALK450S, TRIMMARK III, SATEL-3AS and TRANSEOT. Two removable 6,900 mAh batteries provide up to 24 h of rover operation, while IP67, MIL-STD-810G and a -40 °C to +75 °C range make the Red Dot award-winning housing field-proof. Supplied with the iHand55 controller (Android 11, 3 + 32 GB, IP68) and Hi-Survey Road.
Features
Centimetre-level RTK
8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical, static down to 2.5 mm + 0.5 ppm.
Tilt surveying
Tilt compensation without levelling – the pole may lean and the coordinate stays correct.
Long radio range
Internal UHF typically 3–5 km, up to 8–15 km in good conditions – run your own base instead of relying on a network.
Network RTK up to 50 km
Works far from the reference station via mobile data and a correction service.
Scalable configuration
Expansion levels from base receiver to full specification, matched to project requirements.
Technical product details
SKUHI-TARGET-IRTK-5
Measurement
AccuracyRTK H 8 mm + 1 ppm · V 15 mm + 1 ppm · static 2.5 mm + 0.5 ppm · tilt 8 mm + 0.7 mm/°
RangeInternal UHF typ. 3–5 km (optimal 8–15 km) · network RTK 20–50 km
The iRTK5 is a scalable GNSS RTK receiver built around a next-generation GNSS engine with 1,760 channels. Full constellation support (GPS, BeiDou, GLONASS, Galileo, QZSS, NavIC, SBAS, B2b-PPP), a full-wave antenna and improved anti-noise performance deliver fast initialisation and stable fixes.
The built-in IMU enables calibration-free tilt surveying with no levelling – reach the point and measure straight away. Hi-Fix bridges correction outages and keeps the RTK solution alive. The top-mounted 360° omni-directional antenna extends radio range by around 20 %, and the multi-protocol modem supports Hi-Target, TRIMTALK450S, TRIMMARK III, SATEL-3AS and TRANSEOT. Two removable 6,900 mAh batteries provide up to 24 h of rover operation, while IP67, MIL-STD-810G and a -40 °C to +75 °C range make the Red Dot award-winning housing field-proof. Supplied with the iHand55 controller (Android 11, 3 + 32 GB, IP68) and Hi-Survey Road.
Features
Centimetre-level RTK
8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical, static down to 2.5 mm + 0.5 ppm.
Tilt surveying
Tilt compensation without levelling – the pole may lean and the coordinate stays correct.
Long radio range
Internal UHF typically 3–5 km, up to 8–15 km in good conditions – run your own base instead of relying on a network.
Network RTK up to 50 km
Works far from the reference station via mobile data and a correction service.
Scalable configuration
Expansion levels from base receiver to full specification, matched to project requirements.
Technical product details
SKUHI-TARGET-IRTK-5
Measurement
AccuracyRTK H 8 mm + 1 ppm · V 15 mm + 1 ppm · static 2.5 mm + 0.5 ppm · tilt 8 mm + 0.7 mm/°
RangeInternal UHF typ. 3–5 km (optimal 8–15 km) · network RTK 20–50 km
