Hi-Target
HTS-720
Manual Android total station with T-Survey.
HI-TARGET-HTS-720SKU1VariantshardwareProduct type
01 / 05

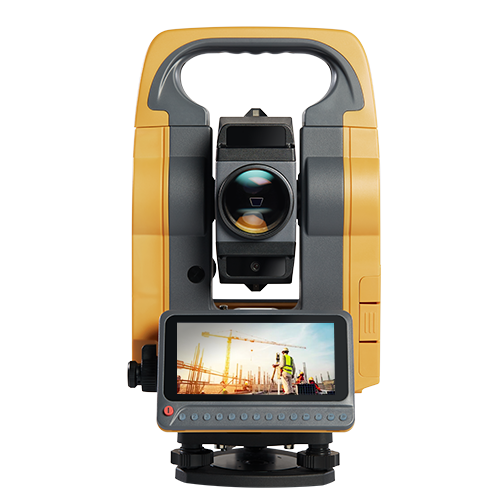

Hi-Target HTS-720
Manual Android total station with T-Survey.
€3,870.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Secure paymentShips from AustriaPersonal support
All details
Product information
The HTS-720 is a manual total station running Android 9.0 on a 5.5" touchscreen (720 × 1440) with an octa-core 1.8 GHz Qualcomm CPU. The T-Survey software provides complete road, bridge and tunnel programmes, a millisecond-response CAD stakeout engine and visual stakeout through the built-in 8 MP camera.
Automatic instrument-height calculation and animated electronic bubble guidance speed up every setup. The station measures up to 1,000 m reflectorless and up to 6,000 m to a prism at 2 mm + 2 ppm. IP65, an operating range of -20 °C to +50 °C and roughly 30,000 measurements per battery charge make it a rugged all-rounder for construction, mining and surveying.
Features
Android total station
5.5" touchscreen running Android 9.0 on an octa-core CPU – smartphone-style operation without an extra controller.

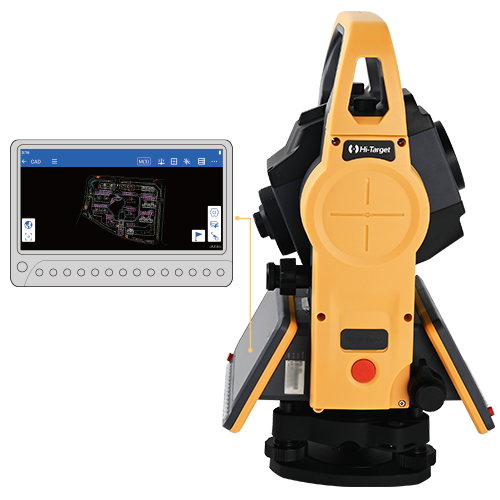

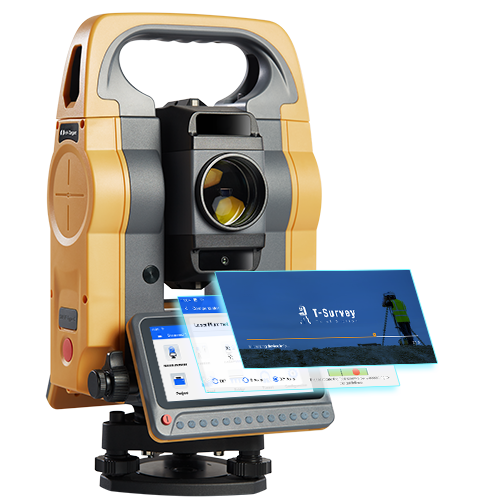

Civil engineering field software
T-Survey provides ready-made road, bridge and tunnel routines directly on the instrument.

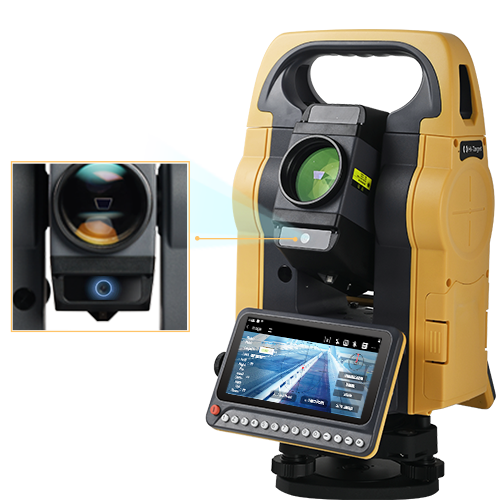

Visual stakeout
The 8 MP camera shows the target in a live image, with CAD stakeout responding in milliseconds.
Long range
Up to 1,000 m reflectorless and 6,000 m to a prism – distant objects are captured without relocating the instrument.
Precision as standard
Angular accuracy of 1″ or 2″ with dual-axis compensator, and automatic instrument height calculation.
Full day in the field
IP65 rated, -20 °C to +50 °C, and around 30,000 measurements per battery charge.
Technical product details
SKUHI-TARGET-HTS-720
Measurement
AccuracyAngle 1″/2″ (optional) · prism 2 mm + 2 ppm · reflectorless 3 mm + 2 ppm
RangePrism up to 6,000 m · reflectorless up to 1,000 m
The HTS-720 is a manual total station running Android 9.0 on a 5.5" touchscreen (720 × 1440) with an octa-core 1.8 GHz Qualcomm CPU. The T-Survey software provides complete road, bridge and tunnel programmes, a millisecond-response CAD stakeout engine and visual stakeout through the built-in 8 MP camera.
Automatic instrument-height calculation and animated electronic bubble guidance speed up every setup. The station measures up to 1,000 m reflectorless and up to 6,000 m to a prism at 2 mm + 2 ppm. IP65, an operating range of -20 °C to +50 °C and roughly 30,000 measurements per battery charge make it a rugged all-rounder for construction, mining and surveying.
Features
Android total station
5.5" touchscreen running Android 9.0 on an octa-core CPU – smartphone-style operation without an extra controller.
Civil engineering field software
T-Survey provides ready-made road, bridge and tunnel routines directly on the instrument.
Visual stakeout
The 8 MP camera shows the target in a live image, with CAD stakeout responding in milliseconds.
Long range
Up to 1,000 m reflectorless and 6,000 m to a prism – distant objects are captured without relocating the instrument.
Precision as standard
Angular accuracy of 1″ or 2″ with dual-axis compensator, and automatic instrument height calculation.
Full day in the field
IP65 rated, -20 °C to +50 °C, and around 30,000 measurements per battery charge.
Technical product details
SKUHI-TARGET-HTS-720
Measurement
AccuracyAngle 1″/2″ (optional) · prism 2 mm + 2 ppm · reflectorless 3 mm + 2 ppm
RangePrism up to 6,000 m · reflectorless up to 1,000 m
