3DMakerpro
Raven

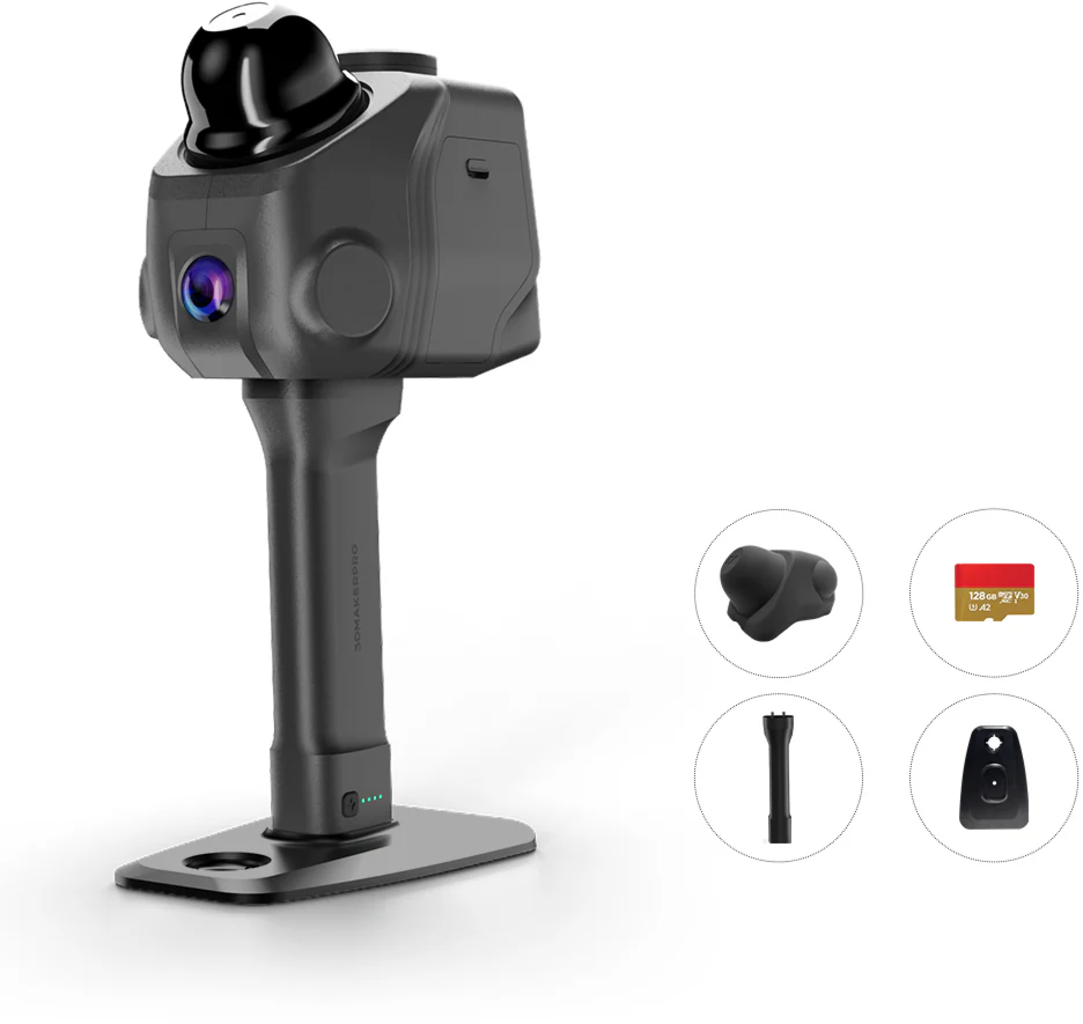

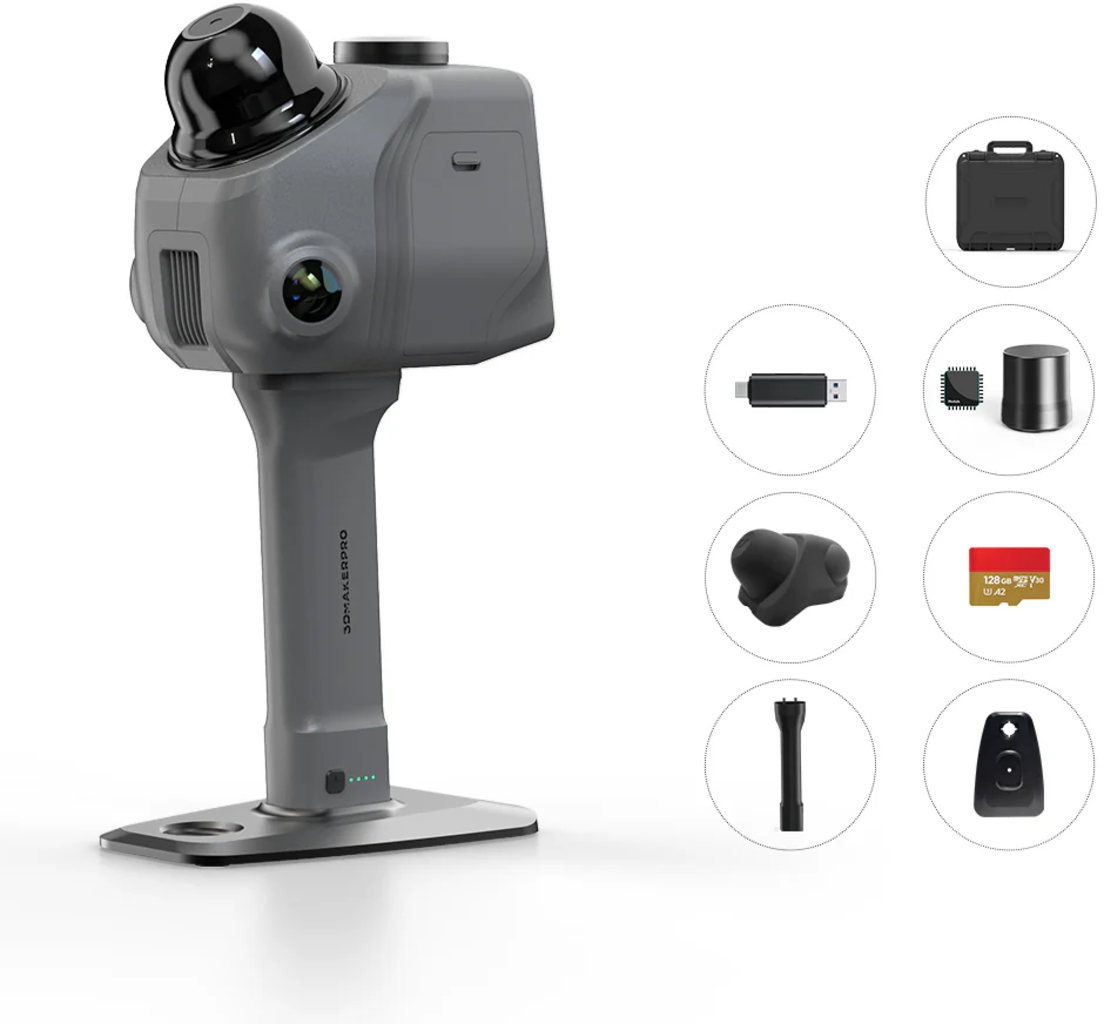

The 3DMakerpro Raven is a portable handheld LiDAR scanner for rapid and precise 3D capture of large environments.
3DMAKERPRO-RAVEN-V2SKU3VariantshardwareProduct type
01 / 04
3DMakerpro Raven
The 3DMakerpro Raven is a portable handheld LiDAR scanner for rapid and precise 3D capture of large environments.
€1,749.00
€2,579.00
excl. VAT · plus shipping
Available at short noticeDelivery date is confirmed after ordering.
Bonus
€670.00 value at no extra cost
Annual SubscriptionIncluded in the packageIncluded€670.00
Secure paymentShips from AustriaPersonal support
All details
Product information
The 3DMakerpro Raven is a professional-grade, portable handheld LiDAR spatial scanner engineered for rapid and precise 3D capture of large-scale physical environments. It excels in digitizing wide-ranging spaces such as rooms, caves, streets, stadiums, and construction sites with high accuracy and ease of mobility. Combining LiDAR, high-resolution camera imagery, IMU, and GPS data, the Raven integrates advanced SLAM technology to produce clean, accurate, and detailed 3D color point clouds and polygonal models, minimizing drift and motion distortion during scans.
The device features a 360° horizontal and 40° vertical scanning field, enabling comprehensive coverage and fast acquisition. The scanner supports up to 100 meters of scan range, with reliable and precise measurements up to 40-50 meters depending on reflectivity, maintaining an accuracy of up to 2 cm at 10 meters. The built-in 12 MP camera enhances colorized point cloud outputs and supports Gaussian splatting for realistic visualizations and virtual reality applications.
Designed for field usage, the Raven is lightweight (only 1.1 kg), with an 8-core 2.4GHz processor and 32GB onboard storage expandable via TF card, ensuring smooth operation and large capacity for data storage. Its 12000mAh fast-charging battery supports up to 2 hours of continuous work, and the scanner can be externally powered while charging for extended use. The device includes a bright 3.9" AMOLED touchscreen for intuitive control and real-time visual feedback.
Additional expansion options include RTK positioning for improved spatial accuracy and Insta360 camera kits to expand imaging capabilities. Coupled with its instant web publisher and Fusion Splatting Engine, the Raven allows quick sharing and interactive 3D exploration of captured environments online.
This makes the 3DMakerpro Raven an ideal tool for architecture, surveying, construction documentation, digital twin creation, VR/AR content development, and other professional applications requiring precise spatial data capture and visualization.
Features
Portable and Lightweight
Weighing only 1.1 kg with a fast-charging 12000mAh battery, suitable for long field sessions and easy handling.
High Accuracy
Up to 2cm accuracy at 10 meters for precise spatial data capture.
Wide Scan Range
Effective scanning up to 40-50 meters, with a maximum range up to 80-100 meters depending on reflectivity.
360° x 40° Scan Angle
Full horizontal rotation and extensive vertical coverage for comprehensive environment capture.
12MP Color Camera System
Enhances point cloud data with high-resolution color textures and supports Gaussian splatting visualization.
Technical product details
SKU3DMAKERPRO-RAVEN-V2
Measurement
Accuracy2 cm at 10 m
Range80–100 m
The 3DMakerpro Raven is a professional-grade, portable handheld LiDAR spatial scanner engineered for rapid and precise 3D capture of large-scale physical environments. It excels in digitizing wide-ranging spaces such as rooms, caves, streets, stadiums, and construction sites with high accuracy and ease of mobility. Combining LiDAR, high-resolution camera imagery, IMU, and GPS data, the Raven integrates advanced SLAM technology to produce clean, accurate, and detailed 3D color point clouds and polygonal models, minimizing drift and motion distortion during scans.
The device features a 360° horizontal and 40° vertical scanning field, enabling comprehensive coverage and fast acquisition. The scanner supports up to 100 meters of scan range, with reliable and precise measurements up to 40-50 meters depending on reflectivity, maintaining an accuracy of up to 2 cm at 10 meters. The built-in 12 MP camera enhances colorized point cloud outputs and supports Gaussian splatting for realistic visualizations and virtual reality applications.
Designed for field usage, the Raven is lightweight (only 1.1 kg), with an 8-core 2.4GHz processor and 32GB onboard storage expandable via TF card, ensuring smooth operation and large capacity for data storage. Its 12000mAh fast-charging battery supports up to 2 hours of continuous work, and the scanner can be externally powered while charging for extended use. The device includes a bright 3.9" AMOLED touchscreen for intuitive control and real-time visual feedback.
Additional expansion options include RTK positioning for improved spatial accuracy and Insta360 camera kits to expand imaging capabilities. Coupled with its instant web publisher and Fusion Splatting Engine, the Raven allows quick sharing and interactive 3D exploration of captured environments online.
This makes the 3DMakerpro Raven an ideal tool for architecture, surveying, construction documentation, digital twin creation, VR/AR content development, and other professional applications requiring precise spatial data capture and visualization.
Features
Portable and Lightweight
Weighing only 1.1 kg with a fast-charging 12000mAh battery, suitable for long field sessions and easy handling.
High Accuracy
Up to 2cm accuracy at 10 meters for precise spatial data capture.
Wide Scan Range
Effective scanning up to 40-50 meters, with a maximum range up to 80-100 meters depending on reflectivity.
360° x 40° Scan Angle
Full horizontal rotation and extensive vertical coverage for comprehensive environment capture.
12MP Color Camera System
Enhances point cloud data with high-resolution color textures and supports Gaussian splatting visualization.
Technical product details
SKU3DMAKERPRO-RAVEN-V2
Measurement
Accuracy2 cm at 10 m
Range80–100 m
