Buy, rent or lease 3DMakerpro Hawk | Scankraft
25+ years of metrology experience
Why Scankraft?
We are a team of technicians and engineers and test every scanner ourselves before recommending it. You receive a solution that works in your real workflow.

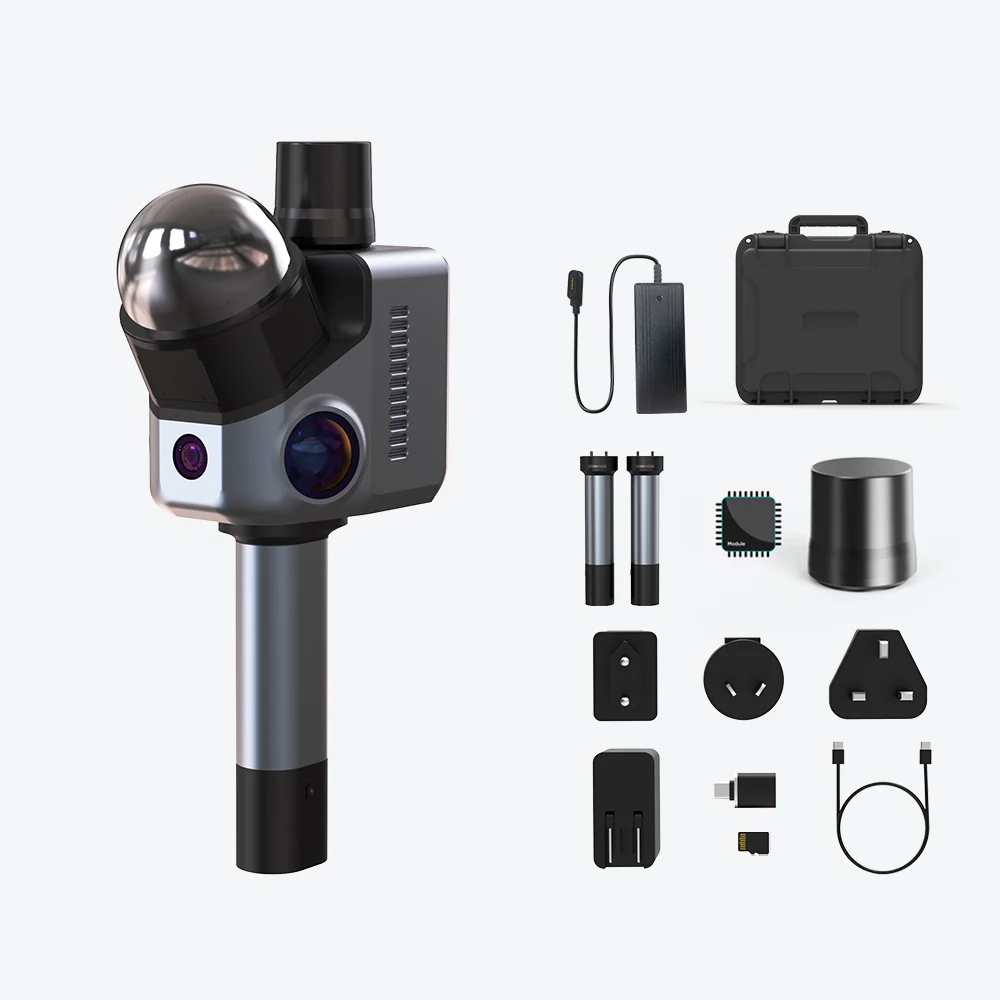

The 3DMakerpro Hawk is a professional LiDAR-based 3D scanner engineered to deliver precision spatial data capture with high efficiency and a broad scanning scope. It features an enhanced imaging system with improved comprehensive accuracy of up to 15mm and a scan angle widened to 63.5°, enabling detailed and accurate 3D scanning over large areas. The scanner processes up to 480,000 points per second, ensuring highly detailed point clouds for precise modeling and analysis. Equipped with dual 13MP 1-inch sensor cameras alongside an NIR visual tracking system, it provides vivid color texture and robust visual tracking capabilities.
Designed with durability and usability in mind, the Hawk incorporates a rugged all-metal casing with superior heat dissipation, a waterproof design compliant with IP65 standards, and an ergonomic battery grip housing a powerful 12,000mAh battery that supports up to one hour of continuous operation plus fast charging (65W, 0 to 80% in 30 minutes). The 3.9-inch vibrant AMOLED screen offers clear viewing and interactive operation of scanning tasks. With comprehensive connectivity options including dual USB Type-C ports and Wi-Fi 5, it facilitates easy data transfer and remote control.
Ideal for industrial applications, creative fields, and accurate prototyping, the 3DMakerpro Hawk excels in delivering reliability, precision, and versatility for advanced 3D scanning needs.
Features
High Accuracy Scanning
Provides 1.5 cm accuracy at 10 meters, ensuring precise spatial data capture.
Wide Scanning Range
Offers an extensive scan radius up to 140 meters horizontally with a 360° field of view and a 63.5° vertical angle.
High-Speed Point Cloud Capture
Capable of processing 480,000 points per second for detailed and dense 3D data acquisition.
Advanced Camera System
Dual 13MP 1-inch sensor cameras with NIR visual tracking system enable high-quality color texture mapping and robust tracking.
Robust Industrial Design
Features an all-metal sealed casing meeting IP65 standards, effective heat dissipation, and a high-capacity 12,000mAh battery for extended field use.
Technical product details
SKU3DMAKERPRO-HAWK
Measurement
Accuracy1.5 cm at 10 m, 3 cm at 20 m, 5 cm at 40 m
Range80–140 m
The 3DMakerpro Hawk is a professional LiDAR-based 3D scanner engineered to deliver precision spatial data capture with high efficiency and a broad scanning scope. It features an enhanced imaging system with improved comprehensive accuracy of up to 15mm and a scan angle widened to 63.5°, enabling detailed and accurate 3D scanning over large areas. The scanner processes up to 480,000 points per second, ensuring highly detailed point clouds for precise modeling and analysis. Equipped with dual 13MP 1-inch sensor cameras alongside an NIR visual tracking system, it provides vivid color texture and robust visual tracking capabilities.
Designed with durability and usability in mind, the Hawk incorporates a rugged all-metal casing with superior heat dissipation, a waterproof design compliant with IP65 standards, and an ergonomic battery grip housing a powerful 12,000mAh battery that supports up to one hour of continuous operation plus fast charging (65W, 0 to 80% in 30 minutes). The 3.9-inch vibrant AMOLED screen offers clear viewing and interactive operation of scanning tasks. With comprehensive connectivity options including dual USB Type-C ports and Wi-Fi 5, it facilitates easy data transfer and remote control.
Ideal for industrial applications, creative fields, and accurate prototyping, the 3DMakerpro Hawk excels in delivering reliability, precision, and versatility for advanced 3D scanning needs.
Features
High Accuracy Scanning
Provides 1.5 cm accuracy at 10 meters, ensuring precise spatial data capture.
Wide Scanning Range
Offers an extensive scan radius up to 140 meters horizontally with a 360° field of view and a 63.5° vertical angle.
High-Speed Point Cloud Capture
Capable of processing 480,000 points per second for detailed and dense 3D data acquisition.
Advanced Camera System
Dual 13MP 1-inch sensor cameras with NIR visual tracking system enable high-quality color texture mapping and robust tracking.
Robust Industrial Design
Features an all-metal sealed casing meeting IP65 standards, effective heat dissipation, and a high-capacity 12,000mAh battery for extended field use.
Technical product details
SKU3DMAKERPRO-HAWK
Measurement
Accuracy1.5 cm at 10 m, 3 cm at 20 m, 5 cm at 40 m
Range80–140 m
